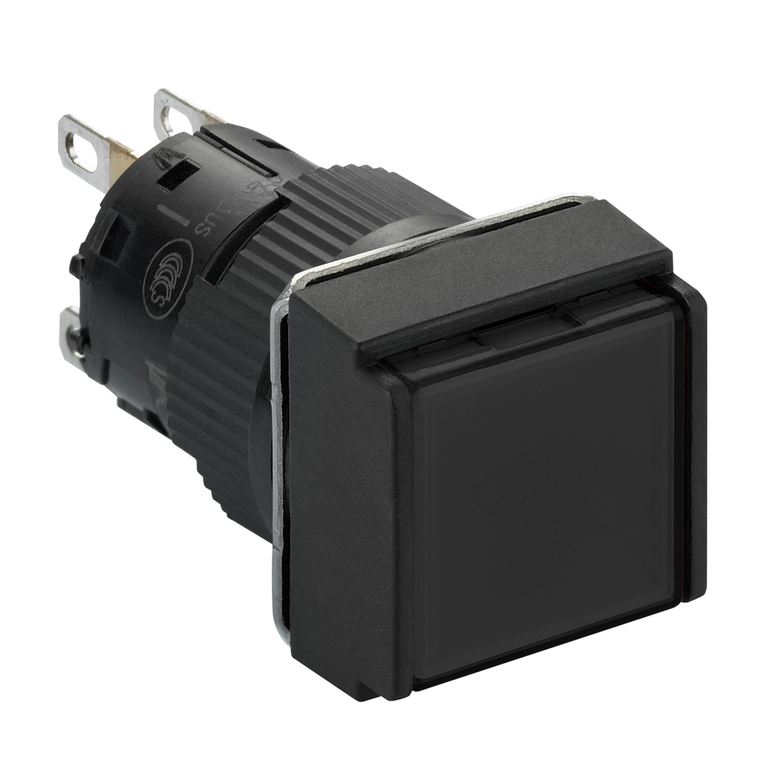

Schneider Electric XB6ECA21P Squa.Pu.But.Bl.No Nc.Ip65 Pack of 50

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB6ECA21P Squa.Pu.But.Bl.No Nc.Ip65 Pack of 50

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB6ECA21P

UPC:

3.38911E+12

MPN:

Condition:

New

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Certifications:

cURus || CCC

Rohs Exemption Information:

Yes

Range Of Product:

Harmony XB6E

Net Weight:

0.006 kg

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Connections - Terminals:

insulated faston 2.8 x 0.5 mm || solder terminal <= 0.75 mm² AWG 19 || fast connector socket

Overvoltage Category:

II IEC 60536

Short-Circuit Protection:

2 A cartridge fuse gG

Mounting Diameter:

16 mm

Environmental Disclosure:

ENVPEP1710010EN

Circularity Profile:

ENVEOLI1710010EN

Contact Resistance:

50 mOhm 1/6 V

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Operating Position:

any position

Contacts Type And Composition:

1 C/O

Mercury Free:

Yes

Warranty:

18 months

Product Or Component Type:

monolithic push-button

Ambient Air Temperature For Operation:

-10-55 °C

Vibration Resistance:

1 mm 10-55 Hz)IEC 60068-2-6

Sale Per Indivisible Quantity:

5

Sustainable Offer Status:

Green Premium product

Contact Operation:

snap action

Bezel Material:

plastic

Shock Resistance:

10 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Shape Of Signaling Unit Head:

square

Marking:

CE

Device Short Name:

XB6E

Reach Free Of Svhc:

Yes

Toxic Heavy Metal Free:

Yes

Standards:

UL 508 || IEC 60947-5-1 || IEC 60947-1 || CSA C22.2 No 14 || JIS C 4520 || JIS C 852

China Rohs Regulation:

X

Mechanical Durability:

1000000 cycles

Tightening Torque:

0.6-1 N.m

Operator Profile:

black flush

Ip Degree Of Protection:

IP65 IEC 60529

[Ith] Conventional Free Air Thermal Current:

3 A fast connector socket) || 5 A

Ambient Air Temperature For Storage:

-40-70 °C

Type Of Operator:

spring return

Contacts Material:

gold-flashed silver

Electrical Durability:

100000 cycles, AC, 0.7 A 220 V EN/IEC 60947-5-1 appendix C

[Ie] Rated Operational Current:

1.5 A 120 V, AC-12 EN/IEC 60947-5-1 || 1 A 240 V, AC-12 EN/IEC 60947-5-1 || 0.7 A 240 V, AC-13 EN/IEC 60947-5-1 || 1 A 120 V, AC-13 EN/IEC 60947-5-1 || 1 A 24 V, DC-12 EN/IEC 60947-5-1 || 0.7 A 24 V, DC-13 EN/IEC 60947-5-1 || 0.2 A 125 V, DC-12 EN/IE
