Schneider Electric

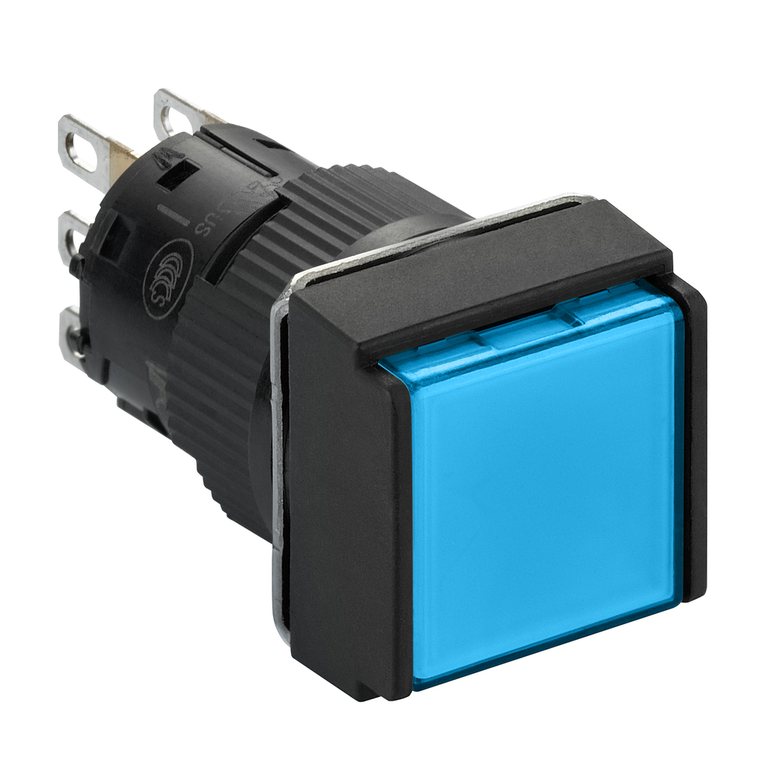

Schneider Electric XB6ECF6B1P Ill.P.To.P.But.S.Bl.No Nc Pack of 5

SKU:

XB6ECF6B1P

UPC:

3389110629200

MPN:

Condition:

New

Electromagnetic Compatibility:

electrostatic discharge immunity test - test level: 8 kV conforming to IEC 61000-4-2

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Range Of Product:

Harmony XB6E

Marking:

CE

Mechanical Durability:

250000 cycles

Ip Degree Of Protection:

IP65 IEC 60529

Light Source:

integral LED

Reach Free Of Svhc:

Yes

Depth:

40 mm

Sale Per Indivisible Quantity:

5

Standards:

IEC 60947-5-1 || IEC 60947-1 || UL 508 || CSA C22.2 No 14 || JIS C 4520 || JIS C 852

[Ui] Rated Insulation Voltage:

250 V 2)IEC 60947-1

Ambient Air Temperature For Storage:

-40-70 °C

Contact Operation:

snap action

Signalling Type:

steady

Operator Profile:

blue flush

Bezel Material:

plastic

Warranty:

18 months

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

[Us] Rated Supply Voltage:

24 V DC polarised

China Rohs Regulation:

X

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Service Life:

50000 h

Device Short Name:

XB6E

[Ith] Conventional Free Air Thermal Current:

0.125

Electrical Durability:

50000 cycles, DC-12, 1 A 30 V IEC 60947-5-1 appendix C || 50000 cycles, AC-12, 0.5 A 125 V IEC 60947-5-1 appendix C || 50000 cycles, AC-12, 0.5 A 250 V IEC 60947-5-1 appendix C

Product Certifications:

CCC || cURus

Mercury Free:

Yes

Shape Of Signaling Unit Head:

square

Electrical Reliability:

λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4

Product Or Component Type:

illuminated monolithic push-button

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Connections - Terminals:

Faston connectors 2.8 x 0.5 mm || soldered connectors

Rohs Exemption Information:

Yes

Overvoltage Category:

II IEC 60536

Net Weight:

0.006 kg

Contacts Type And Composition:

1 C/O

Width:

18 mm

Short-Circuit Protection:

3 A cartridge fuse gG

Operating Position:

any position

Operating Force:

1.3 N C/O changing electrical state

Mounting Diameter:

16 mm

Vibration Resistance:

1 mm 5-55 Hz)IEC 60068-2-6 || 9 gn 5-55 Hz)IEC 60068-2-6

Ambient Air Temperature For Operation:

-10-55 °C

Current Consumption:

10 mA

Shock Resistance:

20 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Height:

18 mm

Contacts Material:

gold-flashed silver

Type Of Operator:

latching

Terminals Description Iso N°1:

(13-14-11-12)OF

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV IEC 60947-1
