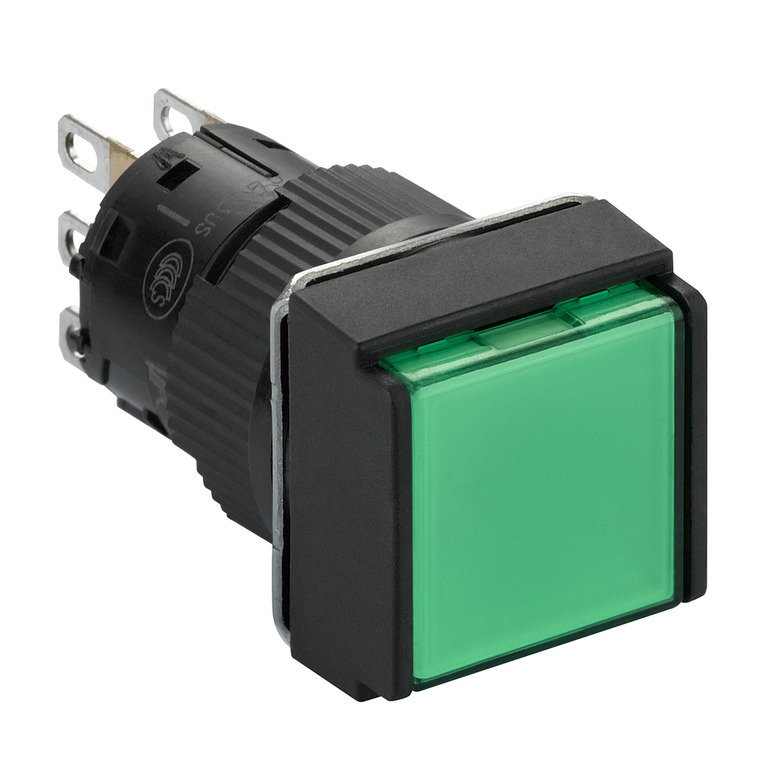

Schneider Electric XB6ECW3B1P Ill.Pu.But.S.Gr.No Nc.24V Pack of 5
Schneider Electric
$82.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XB6ECW3B1P Ill.Pu.But.S.Gr.No Nc.24V Pack of 5
ILL.PU.BUT.S.GR.NO NC.24V
- Rohs Exemption Information:
- Yes
- Type Of Operator:
- spring return
- Range Of Product:
- Harmony XB6E
- Net Weight:
- 0.006 kg
- Electrical Durability:
- 100000 cycles, AC, 0.7 A 220 V IEC 60947-5-1 appendix C
- Contact Resistance:
- 50 mOhm 1/6 V
- Shock Resistance:
- 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operating Position:
- any position
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Us] Rated Supply Voltage:
- 24 V DC polarised
- Signalling Type:
- steady
- Operator Profile:
- green flush
- Contact Operation:
- snap action
- Reach Free Of Svhc:
- Yes
- Light Source:
- integral LED
- Mechanical Durability:
- 1000000 cycles
- Contacts Material:
- gold-flashed silver
- Standards:
- CSA C22.2 No 14 || UL 508 || IEC 60947-1 || JIS C 852 || JIS C 4520 || IEC 60947-5-1
- [Ie] Rated Operational Current:
- 1.5 A 120 V, AC-12 IEC 60947-5-1 || 1 A 240 V, AC-12 IEC 60947-5-1 || 1 A 24 V, DC-12 IEC 60947-5-1 || 0.7 A 24 V, DC-13 IEC 60947-5-1 || 0.2 A 125 V, DC-12 IEC 60947-5-1 || 0.15 A 125 V, DC-13 IEC 60947-5-1
- Circularity Profile:
- ENVEOLI1710010EN
- Warranty:
- 18 months
- Shape Of Signaling Unit Head:
- square
- Ip Degree Of Protection:
- IP65 IEC 60529
- [Ith] Conventional Free Air Thermal Current:
- 3 A fast connector socket) || 5 A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Marking:
- CE
- Service Life:
- 30000 h
- Current Consumption:
- 10 mA
- Environmental Disclosure:
- ENVPEP1710010EN
- Contacts Type And Composition:
- 1 C/O
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free:
- Yes
- Connections - Terminals:
- insulated faston 2.8 x 0.5 mm || solder terminal <= 0.75 mm² AWG 19 || fast connector socket
- Sale Per Indivisible Quantity:
- 5
- Product Certifications:
- CCC || cURus
- Product Or Component Type:
- illuminated monolithic push-button
- Bezel Material:
- plastic
- Mounting Diameter:
- 16 mm
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Storage:
- -40-70 °C
- Device Short Name:
- XB6E
- Vibration Resistance:
- 1 mm 10-55 Hz)IEC 60068-2-6
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation:
- X
- Short-Circuit Protection:
- 2 A cartridge fuse gG
- Ambient Air Temperature For Operation:
- -10-55 °C
- Catalog:
- View
- Datasheet:
- View
