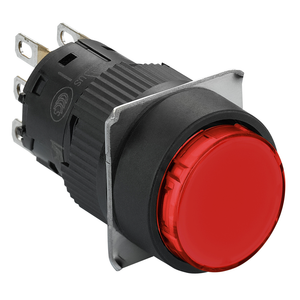

Schneider Electric XB6EDW4B1P Il.Pu.But.Re.Re.No Nc.24V Pack of 5
SKU:
XB6EDW4B1P
UPC:
3389110630848
MPN:
Condition:
New
China Rohs Regulation:
X
[Ie] Rated Operational Current:
1.5 A 120 V, AC-12 EN/IEC 60947-5-1 || 1 A 240 V, AC-12 EN/IEC 60947-5-1 || 1 A 24 V, DC-12 EN/IEC 60947-5-1 || 0.7 A 24 V, DC-13 EN/IEC 60947-5-1 || 0.2 A 125 V, DC-12 EN/IEC 60947-5-1 || 0.15 A 125 V, DC-13 EN/IEC 60947-5-1
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Electrical Durability:
100000 cycles, AC, 0.7 A 220 V EN/IEC 60947-5-1 appendix C
Product Or Component Type:
illuminated monolithic push-button
Ambient Air Temperature For Storage:
-40-70 °C
Warranty:
18 months
Mercury Free:
Yes
Signalling Type:
steady
Device Short Name:
XB6E
Type Of Operator:
spring return
Sustainable Offer Status:
Green Premium product
Contact Operation:
snap action
Mechanical Durability:
1000000 cycles
Range Of Product:
Harmony XB6E
Marking:
CE
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Vibration Resistance:
1 mm 10-55 Hz)IEC 60068-2-6
Operator Profile:
red flush
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Net Weight:
0.006 kg
Environmental Disclosure:
ENVPEP1710010EN
Shock Resistance:
10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ith] Conventional Free Air Thermal Current:
3 A fast connector socket) || 5 A
Connections - Terminals:
insulated faston 2.8 x 0.5 mm || solder terminal <= 0.75 mm² AWG 19 || fast connector socket
Contacts Material:
gold-flashed silver
Current Consumption:
10 mA
Mounting Diameter:
16 mm
Rohs Exemption Information:
Yes
Reach Free Of Svhc:
Yes
Sale Per Indivisible Quantity:
5
Circularity Profile:
ENVEOLI1710010EN
Shape Of Signaling Unit Head:
rectangular
Short-Circuit Protection:
2 A cartridge fuse gG
Light Source:
integral LED
[Us] Rated Supply Voltage:
24 V DC polarised
Operating Position:
any position
Contact Resistance:
50 mOhm 1/6 V
Service Life:
30000 h
Ambient Air Temperature For Operation:
-10-55 °C
Product Certifications:
CCC || cURus
Bezel Material:
plastic
Contacts Type And Composition:
1 C/O
Ip Degree Of Protection:
IP65 IEC 60529
Standards:
CSA C22.2 No 14 || IEC 60947-5-1 || UL 508 || IEC 60947-1 || JIS C 852 || JIS C 4520
