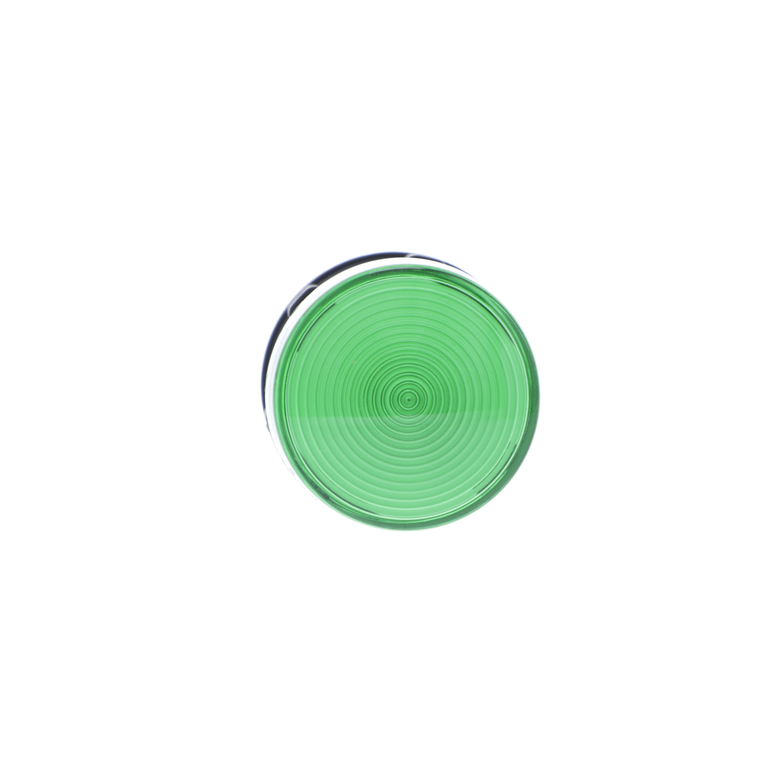

Schneider Electric XB7EV03GP Pilot Light Led Green 120V Ac Pack of 10
Schneider Electric
$360.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XB7EV03GP Pilot Light Led Green 120V Ac Pack of 10
This Harmony XB7, plain lens monolithic green pilot light is supplied with 120V AC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
- Depth:
- 54 mm
- [Us] Rated Supply Voltage:
- 120 V AC 50/60 Hz
- Fixing Mode:
- fixing nut beneath head 2-2.4 N.m
- Light Source:
- LED
- Service Life:
- 70000 h at rated voltage and 25 °C
- Standards:
- UL 508 || IEC 60947-5-1 || IEC 60947-1 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Device Mounting:
- fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-5-1
- China Rohs Regulation:
- X
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- Overvoltage Category:
- class II IEC 60536
- Device Presentation:
- monolithic product
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Free Of Svhc:
- Yes
- Range Of Product:
- Harmony XB7
- Fixing Center:
- >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Sale Per Indivisible Quantity:
- 10
- Device Short Name:
- XB7
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -25-70 °C
- Circularity Profile:
- ENVEOLI1805012EN
- Height:
- 29 mm
- Supply Voltage Limits:
- 100-132 V AC
- Bulb Base:
- integral LED
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Storage:
- -40-70 °C
- Sustainable Offer Status:
- Green Premium product
- [Ui] Rated Insulation Voltage:
- 250 V 3)IEC 60947-1
- Shock Resistance:
- 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Terminals Description Iso N°1:
- (X1-X2)PL
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Net Weight:
- 0.02 kg
- Environmental Disclosure:
- ENVPEP1805012EN
- Toxic Heavy Metal Free:
- Yes
- Width:
- 29 mm
- Shape Of Screw Head:
- cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Signalling Type:
- steady
- Current Consumption:
- 18...21 mA
- Cap/Operator Or Lens Colour:
- green
- Shape Of Signaling Unit Head:
- round
- Ip Degree Of Protection:
- IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
- Protective Treatment:
- TH
- Electromagnetic Compatibility:
- disturbing field emission class B conforming to IEC 55011
- Mounting Diameter:
- 22 mm
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Product Or Component Type:
- pilot light
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Nema Degree Of Protection:
- NEMA 4 UL 50 E || NEMA 12 UL 50 E
