Schneider Electric XB7EV06GP Pilot Light Led Blue 120V Ac Pack of 10

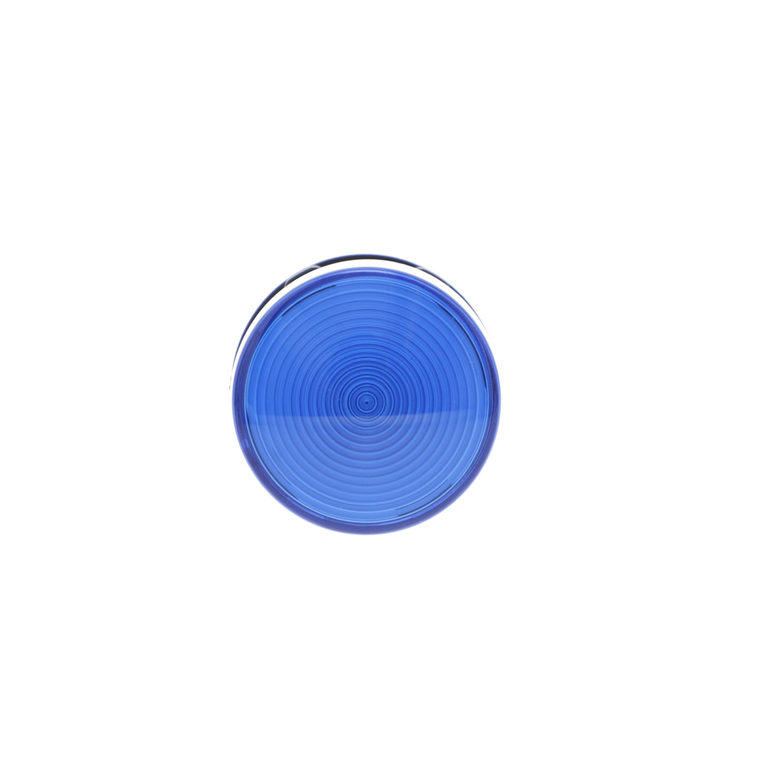

This Harmony XB7, plain lens monolithic blue pilot light is supplied with 120V AC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
- Device Mounting:
- fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-5-1
- Rohs Exemption Information:
- Yes
- Current Consumption:
- 18...21 mA
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Signalling Type:
- steady
- Ambient Air Temperature For Storage:
- -40-70 °C
- Shape Of Signaling Unit Head:
- round
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Shock Resistance:
- 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Terminals Description Iso N°1:
- (X1-X2)PL
- Bulb Base:
- integral LED
- Mounting Diameter:
- 22 mm
- Cap/Operator Or Lens Colour:
- blue
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Net Weight:
- 0.02 kg
- Device Presentation:
- monolithic product
- [Ui] Rated Insulation Voltage:
- 250 V 3)IEC 60947-1
- Nema Degree Of Protection:
- NEMA 4 UL 50 E || NEMA 12 UL 50 E
- Electromagnetic Compatibility:
- disturbing field emission class B conforming to IEC 55011
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Fixing Center:
- >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
- Width:
- 29 mm
- Reach Free Of Svhc:
- Yes
- Sustainable Offer Status:
- Green Premium product
- [Us] Rated Supply Voltage:
- 120 V AC 50/60 Hz
- Toxic Heavy Metal Free:
- Yes
- Environmental Disclosure:
- ENVPEP1805012EN
- China Rohs Regulation:
- X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Shape Of Screw Head:
- cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Light Source:
- LED
- Height:
- 29 mm
- Standards:
- JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-1 || UL 508 || CSA C22.2 No 14 || JIS C8201-1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Product Or Component Type:
- pilot light
- Protective Treatment:
- TH
- Supply Voltage Limits:
- 100-132 V AC
- Circularity Profile:
- ENVEOLI1805012EN
- Ip Degree Of Protection:
- IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
- Range Of Product:
- Harmony XB7
- Ambient Air Temperature For Operation:
- -25-70 °C
- Device Short Name:
- XB7
- Overvoltage Category:
- class II IEC 60536
- Depth:
- 54 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Sale Per Indivisible Quantity:
- 10
- Fixing Mode:
- fixing nut beneath head 2-2.4 N.m
- Service Life:
- 70000 h at rated voltage and 25 °C
