Schneider Electric

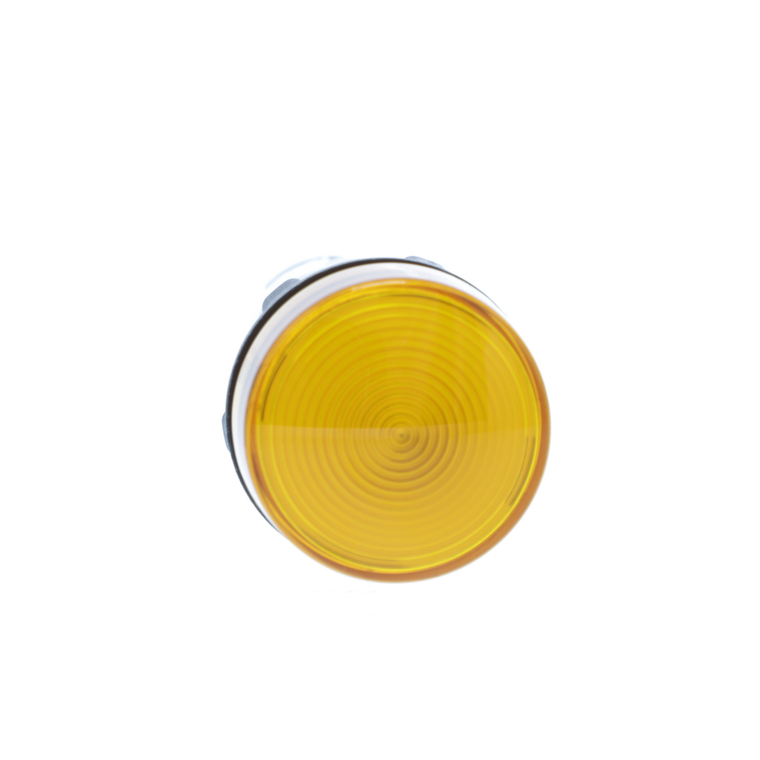

Schneider Electric XB7EV08GP Pilot Light Led Orange 120V Ac Pack of 10

(No reviews yet) Write a Review
SKU:
XB7EV08GP
UPC:
3389119022828
Condition:
New
Signalling Type:
steady
Reach Free Of Svhc:
Yes
Product Or Component Type:
pilot light
Range Of Product:
Harmony XB7
[Ui] Rated Insulation Voltage:
250 V 3)IEC 60947-1
Ip Degree Of Protection:
IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
Shape Of Screw Head:
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Device Short Name:
XB7
Nema Degree Of Protection:
NEMA 4 UL 50 E || NEMA 12 UL 50 E
[Us] Rated Supply Voltage:
120 V AC 50/60 Hz
Toxic Heavy Metal Free:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation:
X
Fixing Center:
>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
Shape Of Signaling Unit Head:
round
Current Consumption:
18...21 mA
Net Weight:
0.02 kg
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Rohs Exemption Information:
Yes
Device Presentation:
monolithic product
Cap/Operator Or Lens Colour:
orange
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Sustainable Offer Status:
Green Premium product
Bulb Base:
integral LED
Mounting Diameter:
22 mm
Depth:
54 mm
Mercury Free:
Yes
Protective Treatment:
TH
Terminals Description Iso N°1:
(X1-X2)PL
Ambient Air Temperature For Operation:
-25-70 °C
Electromagnetic Compatibility:
disturbing field emission class B conforming to IEC 55011
Standards:
IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || UL 508 || IEC 60947-5-1 || JIS C8201-1
Light Source:
LED
Width:
29 mm
Device Mounting:
fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-5-1
Supply Voltage Limits:
100-132 V AC
Warranty:
18 months
Fixing Mode:
fixing nut beneath head 2-2.4 N.m
Overvoltage Category:
class II IEC 60536
Shock Resistance:
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage:
-40-70 °C
Height:
29 mm
Circularity Profile:
ENVEOLI1805012EN
Environmental Disclosure:
ENVPEP1805012EN
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Service Life:
70000 h at rated voltage and 25 °C
Sale Per Indivisible Quantity:
10
Brochure:
View
Catalog:
View
Datasheet:
View
$360.00

Description

This Harmony XB7, plain lens monolithic orange pilot light is supplied with 120V AC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
