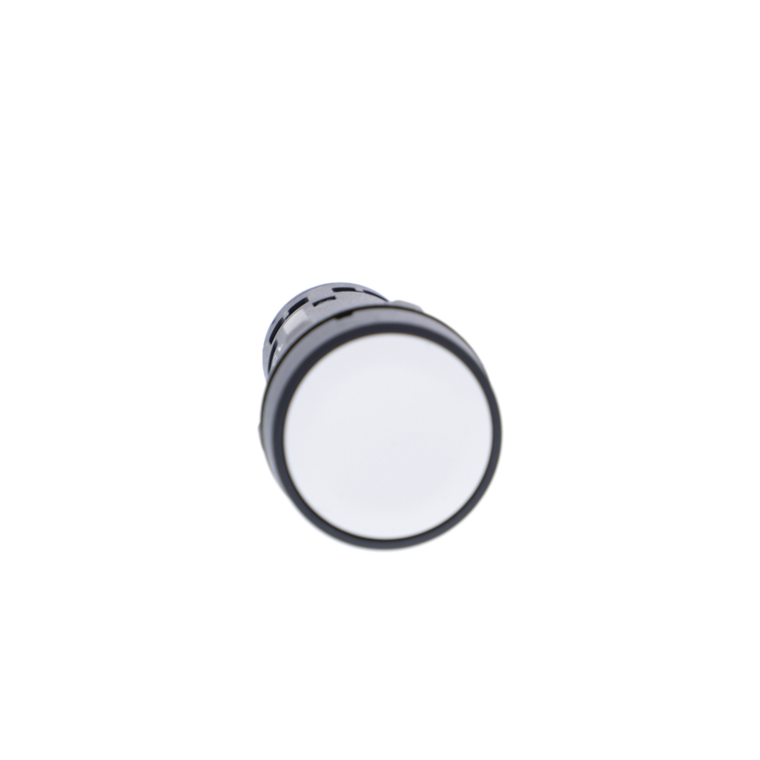

Schneider Electric XB7NA11 Pb - Spring Rtn, White - 1No Pack of 10

Schneider Electric XB7NA11 Pb - Spring Rtn, White - 1No Pack of 10

Schneider Electric
SKU:
XB7NA11
|
UPC:
3606480469787
$192.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB7, monolithic white push button operates with a spring return / impulse mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Additional Information
Operator Profile:
white flush, unmarked
Short-Circuit Protection:
4 A cartridge fuse gG IEC 60947-5-1
Fixing Center:
>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
Device Presentation:
monolithic product
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 60947-1
Range Of Product:
Harmony XB7
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
Product Or Component Type:
push-button
Cad Overall Height:
29 mm
Contact Operation:
slow-break
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Terminals Description Iso N°1:
(13-14)NO
[Ui] Rated Insulation Voltage:
250 V 3)IEC 60947-1
Circularity Profile:
ENVEOLI1805012EN
Toxic Heavy Metal Free:
Yes
Mercury Free:
Yes
Product Certifications:
GOST || CCC
Overvoltage Category:
class II IEC 61140
Mounting Diameter:
22 mm
Device Short Name:
XB7
Ambient Air Temperature For Storage:
-40-70 °C
Fixing Mode:
fixing nut beneath head 2-2.4 N.m
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Sale Per Indivisible Quantity:
10
Nema Degree Of Protection:
NEMA 12 UL 50 E || NEMA 3 UL 50 E
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Warranty:
18 months
Shape Of Screw Head:
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Electrical Durability:
1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
Net Weight:
0.021 kg
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ip Degree Of Protection:
IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
Environmental Disclosure:
ENVPEP1805012EN
Cad Overall Width:
29 mm
Contacts Type And Composition:
1 NO
[Ie] Rated Operational Current:
0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
Standards:
UL 508 || JIS C8201-5-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-1
Cad Overall Depth:
51.5 mm
Sustainable Offer Status:
Green Premium product
Type Of Operator:
spring return
Rohs Exemption Information:
Yes
Mechanical Durability:
1000000 cycles
Electrical Reliability:
λ <= 10exp(-6) 17 V, 5 mA IEC 60947-5-4
China Rohs Regulation:
X
Shape Of Signaling Unit Head:
round
Protective Treatment:
TH
Ambient Air Temperature For Operation:
-25-70 °C
Device Mounting:
fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1
Positive Opening:
with (only NO)
Shock Resistance:
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
