Schneider Electric XB7NA25 Pb - Spring Rtn, Black - No And Nc Pack of 10

Schneider Electric XB7NA25 Pb - Spring Rtn, Black - No And Nc Pack of 10

Schneider Electric
SKU:
XB7NA25
|
UPC:
3606480469954
$280.00
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

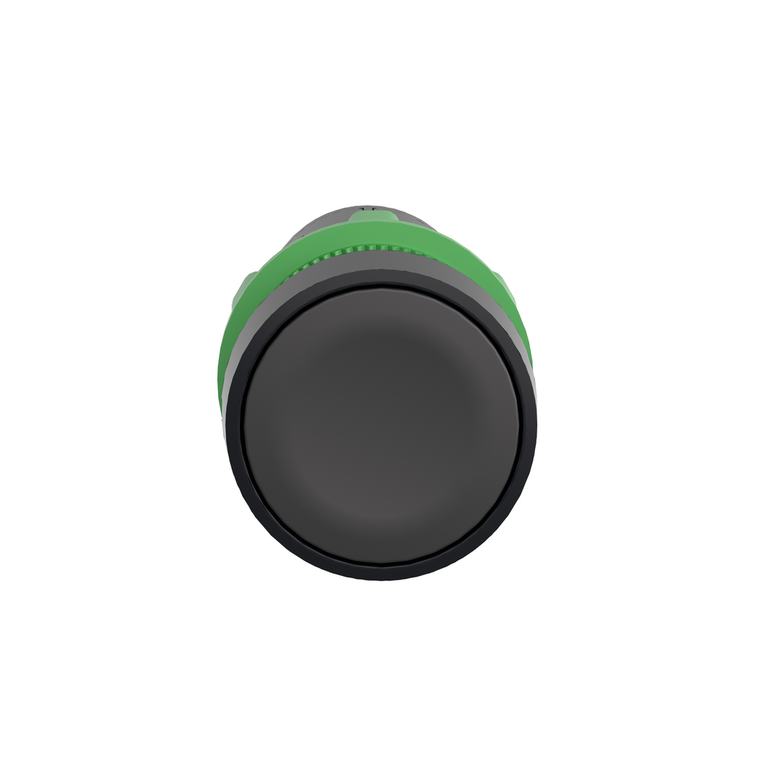

This Harmony XB7, flush monolithic black push button operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Additional Information
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Device Presentation:
monolithic product
Type Of Operator:
spring return
Mounting Diameter:
22 mm
Product Or Component Type:
push-button
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mercury Free:
Yes
Shock Resistance:
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
[Ie] Rated Operational Current:
0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
Contact Operation:
slow-break
Ambient Air Temperature For Storage:
-40-70 °C
Fixing Mode:
fixing nut beneath head 2-2.4 N.m
Shape Of Signaling Unit Head:
round
Electrical Reliability:
λ <= 10exp(-6) 17 V, 5 mA IEC 60947-5-4
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Product Certifications:
CCC || GOST
Shape Of Screw Head:
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
Mechanical Durability:
1000000 cycles
Protective Treatment:
TH
Environmental Disclosure:
ENVPEP1805012EN
Device Mounting:
fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1
Overvoltage Category:
class II IEC 61140
Warranty:
18 months
Positive Opening:
with NC contact IEC 60947-5-1 appendix K
Sale Per Indivisible Quantity:
10
Range Of Product:
Harmony XB7
Cad Overall Depth:
51.5 mm
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 60947-1
[Ui] Rated Insulation Voltage:
250 V 3)IEC 60947-1
Device Short Name:
XB7
China Rohs Regulation:
X
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Nema Degree Of Protection:
NEMA 12 UL 50 E || NEMA 3 UL 50 E
Cad Overall Width:
29 mm
Net Weight:
0.021 kg
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Terminals Description Iso N°1:
(21-22)NC || (13-14)NO
Operator Profile:
black flush, unmarked
Circularity Profile:
ENVEOLI1805012EN
Short-Circuit Protection:
4 A cartridge fuse gG IEC 60947-5-1
Electrical Durability:
1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
Ambient Air Temperature For Operation:
-25-70 °C
Ip Degree Of Protection:
IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Standards:
UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-1 || JIS C8201-1
Toxic Heavy Metal Free:
Yes
Cad Overall Height:
29 mm
Contacts Type And Composition:
1 NO + 1 NC
Fixing Center:
>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
