Schneider Electric XB7NA45 Pb - Spring Rtn, Red - No And Nc Pack of 10

Schneider Electric XB7NA45 Pb - Spring Rtn, Red - No And Nc Pack of 10

Schneider Electric
SKU:
XB7NA45
|
UPC:
3606480470172
Availability:
Factory stock
$190.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

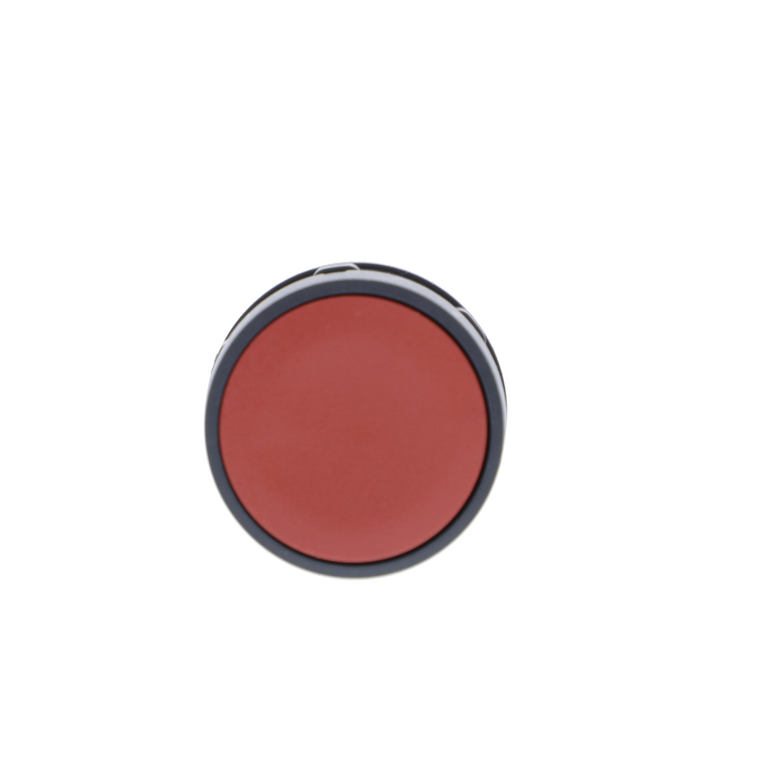

This Harmony XB7, monolithic red push button operates with a spring return / impulse mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Additional Information
Electrical Durability:
1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
Cad Overall Height:
29 mm
Type Of Operator:
spring return
Standards:
CSA C22.2 No 14 || UL 508 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-1 || JIS C8201-1
Positive Opening:
with NC contact IEC 60947-5-1 appendix K
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Contacts Type And Composition:
1 NO + 1 NC
Shape Of Screw Head:
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Product Certifications:
CCC || GOST
Cad Overall Width:
29 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Diameter:
22 mm
China Rohs Regulation:
X
Mercury Free:
Yes
Mechanical Durability:
1000000 cycles
[Ie] Rated Operational Current:
0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
Toxic Heavy Metal Free:
Yes
Overvoltage Category:
class II IEC 61140
Product Or Component Type:
push-button
Shape Of Signaling Unit Head:
round
Short-Circuit Protection:
4 A cartridge fuse gG IEC 60947-5-1
Sustainable Offer Status:
Green Premium product
Nema Degree Of Protection:
NEMA 12 UL 50 E || NEMA 3 UL 50 E
Device Mounting:
fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1
Cad Overall Depth:
51.5 mm
Shock Resistance:
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
Device Short Name:
XB7
Net Weight:
0.021 kg
Sale Per Indivisible Quantity:
10
Electrical Reliability:
λ <= 10exp(-6) 17 V, 5 mA IEC 60947-5-4
[Ui] Rated Insulation Voltage:
250 V 3)IEC 60947-1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Operator Profile:
red flush, unmarked
Fixing Center:
>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
Terminals Description Iso N°1:
(13-14)NO || (21-22)NC
Contact Operation:
slow-break
Ambient Air Temperature For Operation:
-25-70 °C
Warranty:
18 months
Range Of Product:
Harmony XB7
Ip Degree Of Protection:
IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 60947-1
Device Presentation:
monolithic product
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Protective Treatment:
TH
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rohs Exemption Information:
Yes
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage:
-40-70 °C
Circularity Profile:
ENVEOLI1805012EN
Fixing Mode:
fixing nut beneath head 2-2.4 N.m
Environmental Disclosure:
ENVPEP1805012EN
