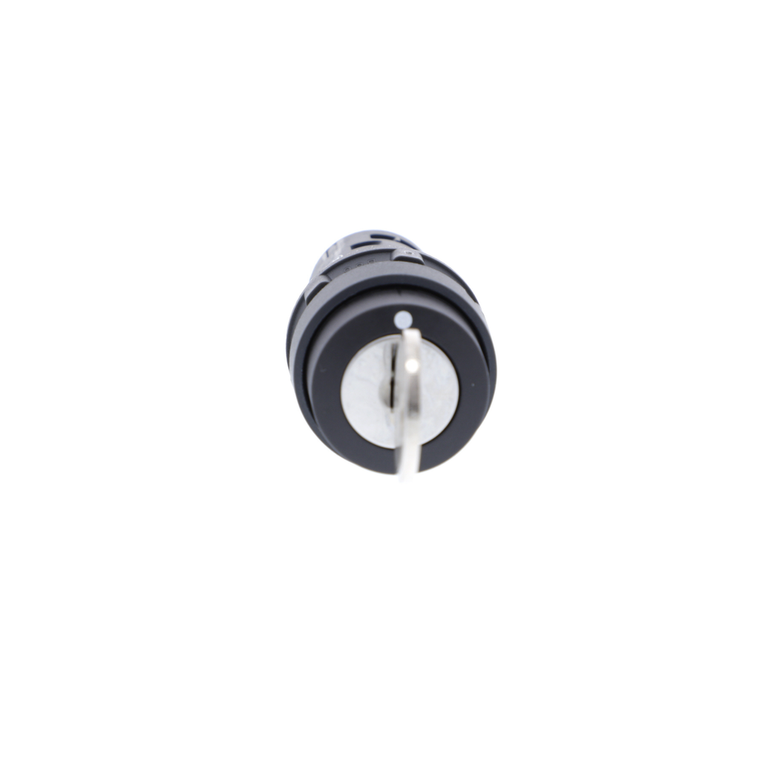

Schneider Electric XB7NG33 Selector - Key -3Pos 2No Pack of 10

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB7NG33 Selector - Key -3Pos 2No Pack of 10

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB7NG33

UPC:

3606480470288

MPN:

Condition:

New

Mounting Diameter:

22 mm

Short-Circuit Protection:

4 A cartridge fuse gG IEC 60947-5-1

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1

Nema Degree Of Protection:

NEMA 12 UL 50 E || NEMA 3 UL 50 E

Sustainable Offer Status:

Green Premium product

Key Withdrawal Position:

center

Warranty:

18 months

Circularity Profile:

ENVEOLI1805012EN

Type Of Operator:

stay put

Sale Per Indivisible Quantity:

10

[Ie] Rated Operational Current:

0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1

Product Or Component Type:

selector switch

Shape Of Screw Head:

cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Type Of Keylock:

key 455

Device Short Name:

XB7

Terminals Description Iso N°1:

(23-24)NO || (13-14)NO

Mechanical Durability:

300000 cycles

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Range Of Product:

Harmony XB7

Ip Degree Of Protection:

IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)

Standards:

IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-5-1 || UL 508 || JIS C8201-1

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Operator Position Information:

3 positions +/- 45°

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Net Weight:

0.05 kg

Shape Of Signaling Unit Head:

round

Cad Overall Depth:

83 mm

Shock Resistance:

50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27

Mercury Free:

Yes

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Cad Overall Width:

29 mm

Ambient Air Temperature For Operation:

-25-70 °C

Electrical Durability:

1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C

Device Mounting:

fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1

Contacts Type And Composition:

2 NO

Electrical Shock Protection Class:

class II IEC 61140

Positive Opening:

without

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Fixing Mode:

fixing nut 2-2.4 N.m

China Rohs Regulation:

X

Contact Operation:

slow-break

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Ambient Air Temperature For Storage:

-40-70 °C

Environmental Disclosure:

ENVPEP1805012EN

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Cad Overall Height:

29 mm

Electrical Reliability:

λ < 10exp(-6) 17 V 5 mA IEC 60947-5-4

Protective Treatment:

TH

Fixing Center:

>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)
