Schneider Electric XB7NJ04M1 Illum. P.B - Led - Latch -1No - Red - 23 Pack of 10

Schneider Electric XB7NJ04M1 Illum. P.B - Led - Latch -1No - Red - 23 Pack of 10

Schneider Electric
SKU:
XB7NJ04M1
|
UPC:
3.60648E+12
$927.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

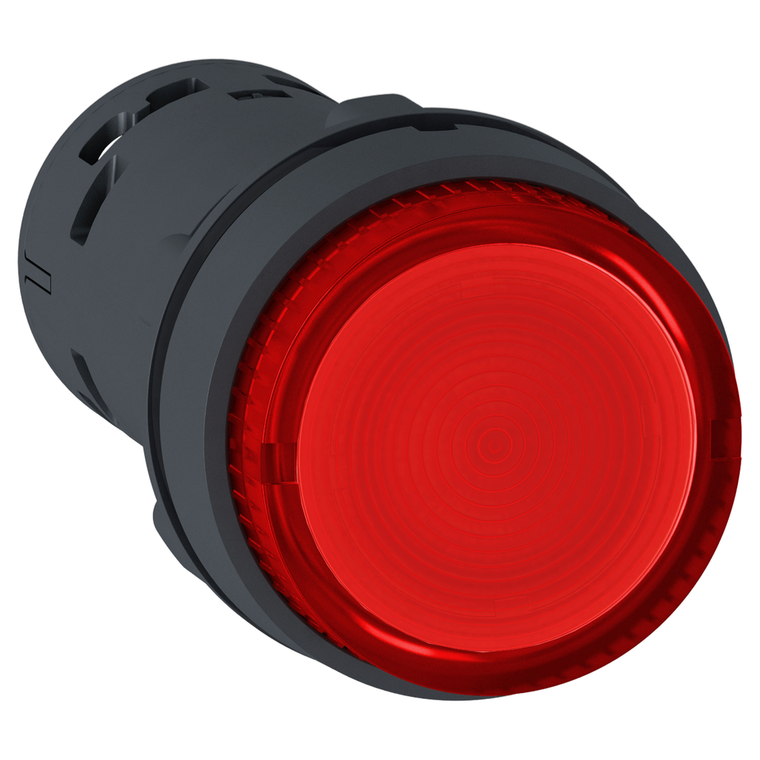

This Harmony XB7, illuminated monolithic red push button operates with a latched push to release mechanism, is supplied with 230V AC and uses screw-clamp terminals. It is easily installed into a standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illuminated head, minimizing errors in machine control and enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Additional Information
Terminals Description Iso N°1:
(13-14)NO
Product Certifications:
CCC || GOST
Product Or Component Type:
illuminated push-button
Operator Additional Information:
with plain lens
Electrical Shock Protection Class:
class II IEC 61140
Cad Overall Height:
29 mm
Ambient Air Temperature For Operation:
-25-70 °C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Electrical Reliability:
λ <= 10exp(-6) 17 V 5 mA IEC 60947-5-4
Service Life:
70000 h at rated voltage and 25 °C
Shape Of Screw Head:
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Warranty:
18 months
Short-Circuit Protection:
4 A cartridge fuse gG IEC 60947-5-1
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Net Weight:
0.023 kg
Protective Treatment:
TH
Supply Voltage Limits:
195-264 V AC
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Bulb Base:
integral LED
Ambient Air Temperature For Storage:
-40-70 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Environmental Disclosure:
ENVPEP1805012EN
Cad Overall Depth:
57.5 mm
Fixing Center:
>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
Rohs Exemption Information:
Yes
Device Presentation:
monolithic product
Signalling Type:
steady
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 60947-1
China Rohs Regulation:
X
Shock Resistance:
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration
Sale Per Indivisible Quantity:
10
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mechanical Durability:
300000 cycles
Positive Opening:
with (only NO)
Electromagnetic Emission:
class B IEC 55011
Mounting Diameter:
22 mm
Contact Operation:
slow-break
Sustainable Offer Status:
Green Premium product
Nema Degree Of Protection:
NEMA 12 UL 50 E
[Us] Rated Supply Voltage:
230 V AC 50/60 Hz
Operator Profile:
red projecting, unmarked
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Contacts Type And Composition:
1 NO
Standards:
JIS C8201-5-1 || IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-1
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
Fixing Mode:
fixing nut beneath head 2-2.4 N.m
Range Of Product:
Harmony XB7
Electrical Durability:
1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage:
250 V 3)IEC 60947-1
Cad Overall Width:
29 mm
Shape Of Signaling Unit Head:
round
Light Source:
LED
Current Consumption:
22...27 mA
Mercury Free:
Yes
[Ie] Rated Operational Current:
0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
Type Of Operator:
push and push-to-release
Circularity Profile:
ENVEOLI1805012EN
Device Mounting:
fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1
Device Short Name:
XB7
Ip Degree Of Protection:
IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
Brochure:
View
Datasheet:
View
