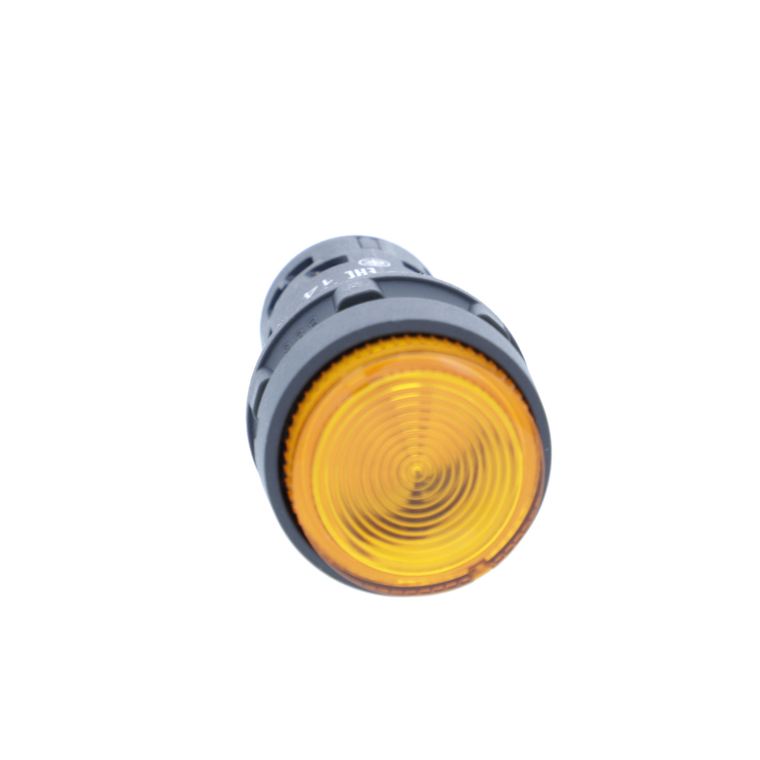

Schneider Electric XB7NW35B1 Illum. P.B - Led - Spring Rtn -1No - Ora Pack of 10

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB7NW35B1 Illum. P.B - Led - Spring Rtn -1No - Ora Pack of 10

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB7NW35B1

UPC:

3606480470868

MPN:

Condition:

New

Cad Overall Depth:

57.5 mm

Mechanical Durability:

300000 cycles

Shape Of Screw Head:

cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

[Ie] Rated Operational Current:

0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1

Electrical Shock Protection Class:

class II IEC 61140

China Rohs Regulation:

X

Signalling Type:

steady

Device Short Name:

XB7

Standards:

UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-1 || JIS C8201-1

Current Consumption:

18...27 mA

Protective Treatment:

TH

Terminals Description Iso N°1:

(13-14)NO

Fixing Mode:

fixing nut beneath head 2-2.4 N.m

Sustainable Offer Status:

Green Premium product

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Operator Profile:

orange projecting, unmarked

Light Source:

LED

Service Life:

70000 h at rated voltage and 25 °C

Electromagnetic Emission:

class B IEC 55011

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Net Weight:

0.023 kg

Product Or Component Type:

illuminated push-button

Mercury Free:

Yes

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1

Sale Per Indivisible Quantity:

10

Mounting Diameter:

22 mm

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Product Certifications:

GOST || CCC

Short-Circuit Protection:

4 A cartridge fuse gG IEC 60947-5-1

Bulb Base:

integral LED

Range Of Product:

Harmony XB7

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Contact Operation:

slow-break

Shape Of Signaling Unit Head:

round

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Electrical Durability:

1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C

Fixing Center:

>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nema Degree Of Protection:

NEMA 12 UL 50 E

Supply Voltage Limits:

19.2-30 V DC || 21.6-26.4 V AC

Cad Overall Height:

29 mm

Cad Overall Width:

29 mm

Circularity Profile:

ENVEOLI1805012EN

Rohs Exemption Information:

Yes

[Us] Rated Supply Voltage:

24 V AC/DC

Ambient Air Temperature For Storage:

-40-70 °C

Electrical Reliability:

λ <= 10exp(-6) 17 V 5 mA IEC 60947-5-4

Type Of Operator:

spring return

Ip Degree Of Protection:

IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Device Presentation:

monolithic product

Device Mounting:

fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1

Shock Resistance:

50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration

Positive Opening:

with (only NO)

Environmental Disclosure:

ENVPEP1805012EN

Warranty:

18 months

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Contacts Type And Composition:

1 NO

Ambient Air Temperature For Operation:

-25-70 °C
