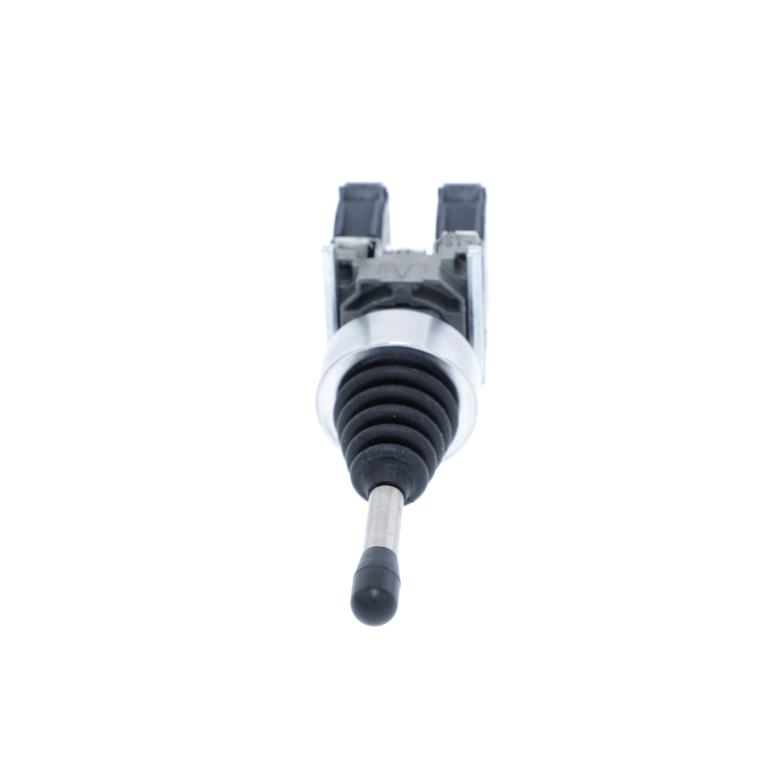

Schneider Electric XD4PA12 Joystick

Schneider Electric XD4PA12 Joystick

Schneider Electric
SKU:
XD4PA12
|
UPC:
3389110887402
Availability:
Contact us to confirm availability and lead times.
$250.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB4, joystick controller operates with 2-direction stay-put mechanism. It has 2 x NO (1 per direction) contacts and a chromium-plated metal bezel. This joystick provides a versatile and intuitive interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement.
Additional Information
Product Or Component Type:
joystick controller
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation:
X
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sale Per Indivisible Quantity:
1
Operator Position Information:
3 positions
Type Of Operator:
stay put, long operating shaft 54 mm
Electrical Shock Protection Class:
class I IEC 60536
Contact Operation:
slow-break
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Mercury Free:
Yes
Range Of Product:
Harmony XDA
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Ip Degree Of Protection:
IP66 IEC 60529
Device Presentation:
complete product
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Contacts Type And Composition:
1 NO
Operator Direction Information:
2 directions
Ik Degree Of Protection:
IK03 IEC 50102
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Bezel Material:
chromium plated metal
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Fixing Collar Material:
zamak
Notch Per Direction:
45292
Contacts Usage:
standard
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Certifications:
GL || DNV || BV || LROS (Lloyds register of shipping) || CSA || UL Listed
Mechanical Durability:
1000000 cycles
Device Short Name:
XD4
Rohs Exemption Information:
Yes
Net Weight:
0.116 kg
Ambient Air Temperature For Operation:
-25-70 °C
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Standards:
IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-5 || IEC 60947-1 || UL 508 || IEC 60947-5-1 || JIS C8201-1
Mounting Diameter:
22 mm
Warranty:
18 months
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Ambient Air Temperature For Storage:
-40-70 °C
Contacts Material:
silver alloy (Ag/Ni)
Shape Of Signaling Unit Head:
round
Protective Treatment:
TH
[Ie] Rated Operational Current:
0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Positive Opening:
without
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
