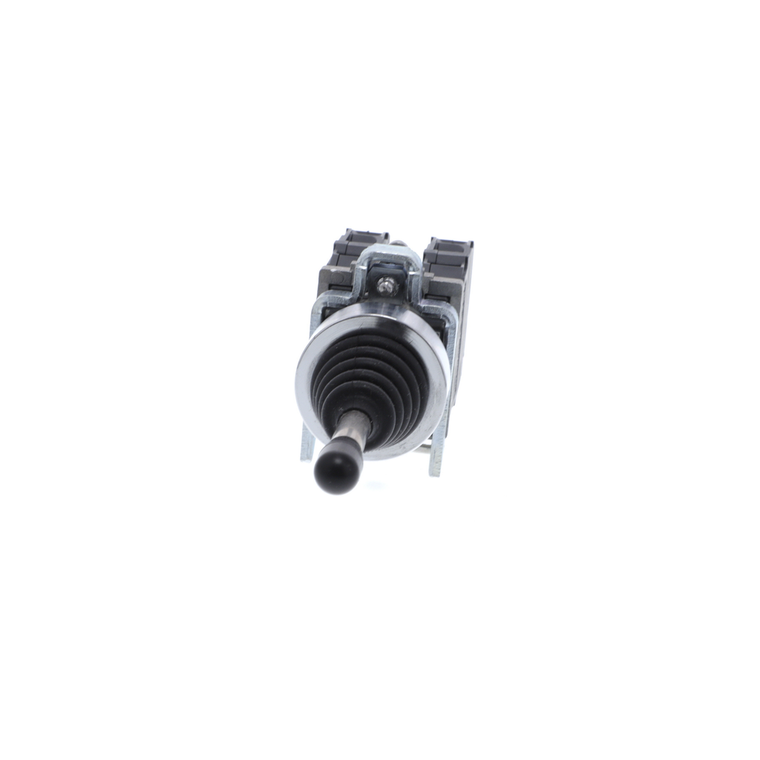

Schneider Electric XD4PA14 Joystick

Schneider Electric XD4PA14 Joystick

Schneider Electric
SKU:
XD4PA14
|
UPC:
3389110887426
$316.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Harmony XB4, joystick controller operates with 2-direction stay-put mechanism. It has 2 x NO (1 per direction) contacts and a chromium-plated metal bezel. This joystick provides a versatile and intuitive interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement.
Additional Information
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Sale Per Indivisible Quantity:
1
Mounting Diameter:
22 mm
[Ie] Rated Operational Current:
0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
Operator Position Information:
5 positions
Ambient Air Temperature For Storage:
-40-70 °C
Ambient Air Temperature For Operation:
-25-70 °C
Contacts Material:
silver alloy (Ag/Ni)
Contacts Usage:
standard
Mechanical Durability:
1000000 cycles
Contact Operation:
slow-break
Type Of Operator:
stay put, long operating shaft 54 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Bezel Material:
chromium plated metal
Operator Direction Information:
4 directions
Mercury Free:
Yes
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Ip Degree Of Protection:
IP66 IEC 60529
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Device Presentation:
complete product
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Contacts Type And Composition:
1 NO
Rohs Exemption Information:
Yes
Shape Of Signaling Unit Head:
round
Electrical Shock Protection Class:
class I IEC 60536
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Positive Opening:
without
Standards:
UL 508 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-5 || JIS C8201-1
China Rohs Regulation:
X
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Device Short Name:
XD4
Range Of Product:
Harmony XDA
Product Or Component Type:
joystick controller
Protective Treatment:
TH
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Certifications:
LROS (Lloyds register of shipping) || CSA || UL Listed || BV || DNV || GL
Ik Degree Of Protection:
IK03 IEC 50102
Net Weight:
0.133 kg
Warranty:
18 months
Notch Per Direction:
45292
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Fixing Collar Material:
zamak
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
