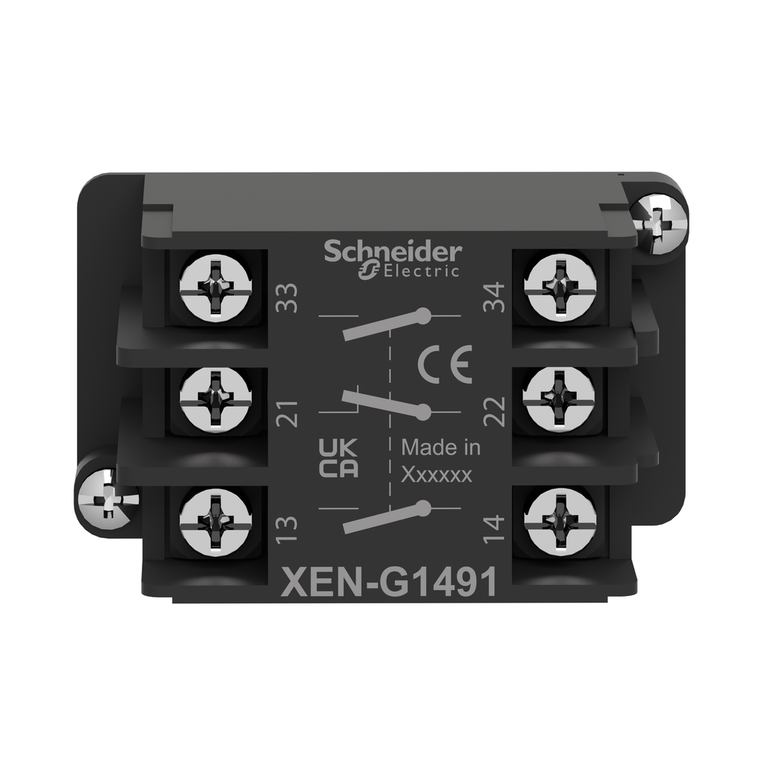

Schneider Electric XENG1491 Spring Return Contact Block 1 Nc And 2 N
This spring return contact block is a separate component for double insulated, XACA pendant control station. It is designed for front mounting and features 1 NC + 2 NO contacts.
- Overvoltage Category:
- class II IEC 61140
- Range Of Product:
- Harmony XAC
- Contact Operation:
- slow-break || simultaneous
- Contacts Type And Composition:
- 1 NC + 2 NO
- Environmental Disclosure:
- ENVPEP120101EN
- Terminals Description Iso N°1:
- (21-22)NC || (13-14)NO || (33-34)NO
- Mechanical Durability:
- 1000000 cycles
- Mounting Of Block:
- front mounting
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Operating Force:
- 18 N
- Ambient Air Temperature For Storage:
- -40-70 °C
- Component Name:
- XENG
- Toxic Heavy Metal Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Contact Block Type:
- single
- Product Compatibility:
- XACA9...head || XACA
- Contact Code Designation:
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
- Maximum Resistance Across Terminals:
- 25 MOhm
- Rohs Exemption Information:
- Yes
- Electrical Circuit Type:
- control circuit
- Net Weight:
- 0.04 kg
- Ambient Air Temperature For Operation:
- -25-70 °C
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- N/A
- Standards:
- IEC 60947-5-1 || CSA C22.2 No 14 || UL 508
- Product Or Component Type:
- contact block
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Warranty:
- 18 months
- Short-Circuit Protection:
- 10 A fuse protection cartridge gG
- Type Of Operator:
- spring return
- Connections - Terminals:
- screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end || screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
- Contact Block Application:
- single speed
- Vibration Resistance:
- 15 gn 10-500 Hz)IEC 60068-2-6
- China Rohs Regulation:
- X
- Reach Free Of Svhc:
- Yes
- [Ithe] Conventional Enclosed Thermal Current:
- 0.416666666666667
- Rated Operational Power In W:
- 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Shock Resistance:
- 100 gn IEC 60068-2-27
