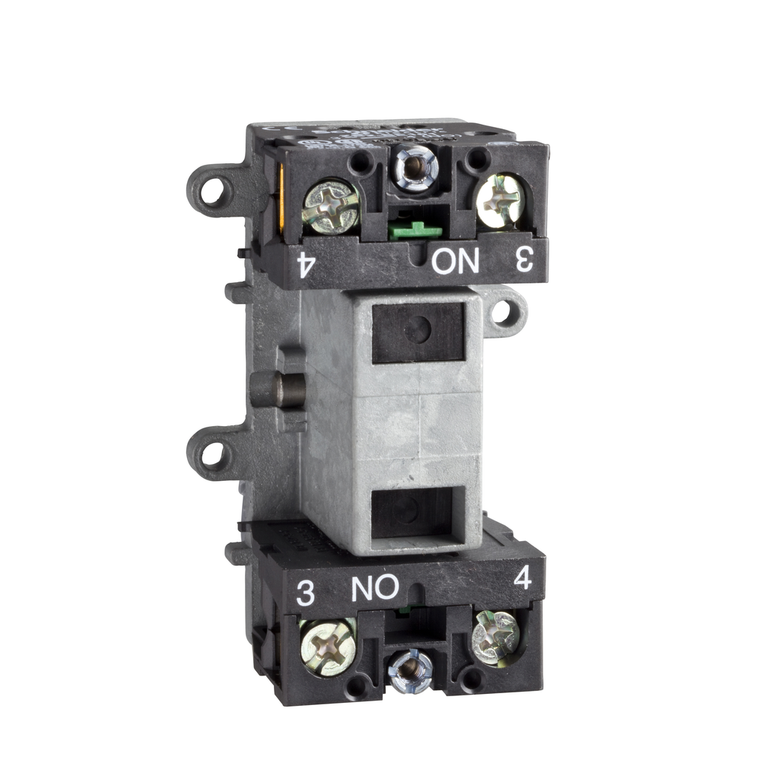

Schneider Electric XENG3791 Contact Element
Schneider Electric
$36.02
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This contact block allows fast and easy replacement and configuration of your push buttons and selector switches It protects operators from unexpected contact with live circuits thanks to its IP20 protection index It is easily installed and replaced on XACM and XACB pendant control stations and connects to control circuits with simple screw-clamp connections
- Ambient Air Temperature For Operation:
- -25-70 °C
- Mounting Of Block:
- front mounting
- Terminals Description Iso N°2:
- (11-12)NC || B
- Toxic Heavy Metal Free:
- Yes
- Warranty:
- 18 months
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rated Operational Power In W:
- 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
- Component Name:
- XENG
- Reach Free Of Svhc:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Contact Operation:
- slow-break
- Operating Force:
- 13 N
- Contact Block Type:
- double
- Contact Block Application:
- single speed
- Maximum Resistance Across Terminals:
- 25 MOhm
- Type Of Operator:
- latching
- Contact Code Designation:
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
- Ambient Air Temperature For Storage:
- -40-70 °C
- Connections - Terminals:
- screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end || screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free:
- Yes
- Shock Resistance:
- 100 gn IEC 60068-2-27
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- [Ithe] Conventional Enclosed Thermal Current:
- 0.416666666666667
- Product Compatibility:
- XACA
- Overvoltage Category:
- class II IEC 61140
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Vibration Resistance:
- 15 gn 10-500 Hz)IEC 60068-2-6
- Short-Circuit Protection:
- 10 A fuse protection cartridge gG
- Mechanical Durability:
- 1000000 cycles
- Electrical Circuit Type:
- control circuit
- Standards:
- UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Product Or Component Type:
- contact block
- China Rohs Regulation:
- X
- Terminals Description Iso N°1:
- (13-14)NO || B
- Range Of Product:
- Harmony XAC
- Rohs Exemption Information:
- Yes
- Contacts Type And Composition:
- 1 NO + 1 NC
