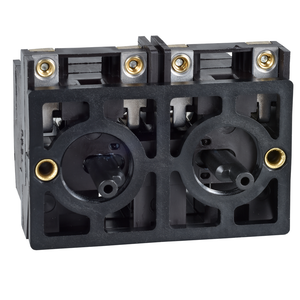

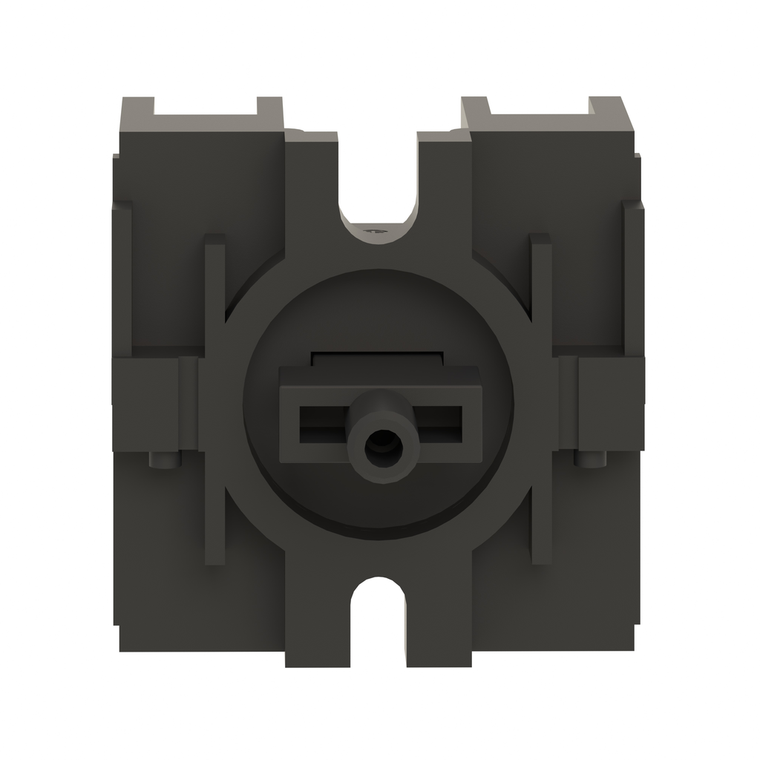

Schneider Electric XESB2011 Spring Return Contact Block 1 Oc Front M

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XESB2011 Spring Return Contact Block 1 Oc Front M

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XESB2011

UPC:

3389110607987

MPN:

Condition:

New

Mechanical Durability:

1000000 cycles

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Terminal Identifier:

(13-14)NO || (11-12)NC

Rated Operational Power In Va:

100 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0.5 inductive || 450 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0.5 inductive || 50 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0.5 inductive || 750 VA AC-15 1000000 cycles 60 cyc/mn 230 V

Rated Operational Power In W:

140 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C || 140 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 95 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C

China Rohs Regulation:

X

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Terminals Description Iso N°1:

(3-4-1-2)OF

Toxic Heavy Metal Free:

Yes

Operating Force:

25 N || 15 N

Component Name:

XESB

Electrical Circuit Type:

control circuit

Range Of Product:

Harmony XAC

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Resistance Across Terminals:

25 MOhm

[Ui] Rated Insulation Voltage:

500 V 3)IEC 60947-1

Electrical Shock Protection Class:

class II IEC 61140

Rohs Exemption Information:

Yes

Vibration Resistance:

15 gn 10-500 Hz)IEC 60068-2-6

Shock Resistance:

100 gn IEC 60068-2-27

Contact Operation:

snap action

Contact Block Type:

single

Product Or Component Type:

contact block

Ambient Air Temperature For Operation:

-25-70 °C

Connections - Terminals:

screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end

Standards:

IEC 60947-5-1 || CSA C22.2 No 14

[Ithe] Conventional Enclosed Thermal Current:

0.416666666666667

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Type Of Operator:

spring return

Contact Code Designation:

A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A

Mercury Free:

Yes

Product Compatibility:

XACM || XACB || XAB91...

Reach Free Of Svhc:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Mechanical Interlocking:

without mechanical interlock

Contact Block Application:

single speed

Warranty:

18 months

Mounting Of Block:

front mounting

Short-Circuit Protection:

10 A fuse protection cartridge gG

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
