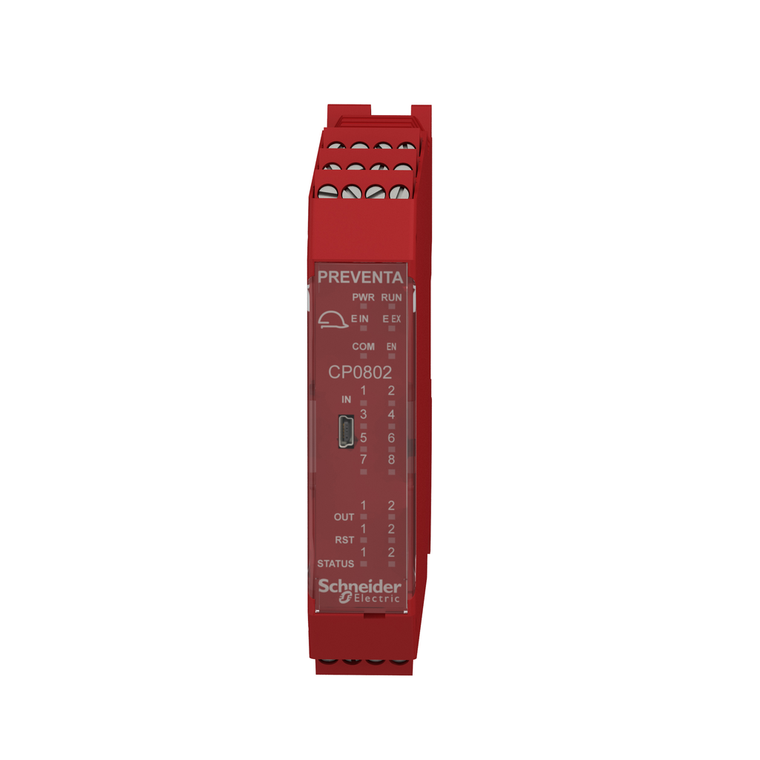

Schneider Electric XPSMCMCP0802 Controller 8 Input 2 Output Screw Term

(No reviews yet) Write a Review
SKU:
XPSMCMCP0802
UPC:
3606480748561
Condition:
New
Overvoltage Category:
II
Net Weight:
0.25 kg
Standards:
EN/IEC 61508 || EN/ISO 13849-1 || EN/IEC 61496-1 || EN/IEC 61800-5-1 || IEC 62061
Inductive Load:
30 mH
Rohs Exemption Information:
Yes
Power Dissipation In W:
3 W
Maximum Number Of I/O Expansion Module:
14 128 input || 14 16 output
Vibration Resistance:
+/-0.35 mm 10-55 Hz)EN/IEC 61496-1
Safety Level:
can reach category 4 EN/ISO 13849-1 || can reach PL = e EN/ISO 13849-1 || type 4 EN/IEC 61496-1 || SILCL 3 IEC 62061
Width:
22.5 mm
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
X
Function Of Module:
emergency stop EN/ISO 13850 || guard monitoring EN/ISO 14119 || enabling switch monitoring EN/IEC 60947-5-1 || light curtain monitoring EN/IEC 61496-1 || foot switch monitoring EN/IEC 60947-5-1 || magnetic switch monitoring EN/ISO 14119 || two-hand c
Mercury Free:
Yes
Discrete Input Type:
safety input || PNP
Relative Humidity:
10-95 %
Pvc Free:
Yes
Ip Degree Of Protection:
IP20
Discrete Output Type:
PNP
Number Of Inputs:
8 digital input connection || 2 digital interlock start/restart or external device monitoring
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Discrete Input Voltage:
24 V
Product Certifications:
cULus || RCM || TÜV
Depth:
114.5 mm
Connections - Terminals:
2 captive screw terminals, removable terminal block || 1 captive screw terminals, removable terminal block
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Data Storage Equipment:
SD card optional)
Electrical Connection:
screw terminal
Quality Labels:
CE
Electromagnetic Compatibility:
electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to EN/IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to EN/IEC 61000-4-2 || susceptibility to electromagnetic fields - te
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Range Of Product:
Modicon Safety automation
Reach Free Of Svhc:
Yes
Device Short Name:
XPSMCM
Discrete Input Current:
400 mA
Synchronisation Time Between Inputs:
< 0.5 ms
Circularity Profile:
ENVEOLI1409010EN
Discrete Output Current:
400 mA
Service Life:
20 year(s)
Number Of Outputs:
2 safety outputs OSSD contactor/drive connection || 4 test line control outputs || 2 configurable diagnostic connection
Pollution Degree:
2
Cable Cross Section:
0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, wit
[Us] Rated Supply Voltage:
24 V - 20...20 % DC
Integrated Connection Type:
backplane expansion bus || USB 2.0 port
Insulation:
250 V AC between power supply and housing EN/IEC 61800-5-1
Shock Resistance:
10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1
Load Capacitance:
0.82 µF
Safety Reliability Data:
PFHd = 6.06E-9 1/h || DC > 99 % || MTTFd < 100 years high
[Uimp] Rated Impulse Withstand Voltage:
4 kV EN/IEC 61800-5-1
Environmental Disclosure:
ENVPEP1409010EN
Ambient Air Temperature For Storage:
-20-85 °C
Height:
99 mm
Local Signalling:
1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 1 LED orange COM communication || 1 LED blue EN master enable || 8 LEDs yellow IN input status || 2 LEDs green/red OUT outpu
Product Or Component Type:
safety controller CPU
Mounting Support:
omega 35 mm DIN rail EN 50022
Ambient Air Temperature For Operation:
-10-55 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
  • Schneider Electric XPSMCMCP0802 Controller 8 Input 2 Output Screw Term
  • Schneider Electric XPSMCMCP0802 Controller 8 Input 2 Output Screw Term
  • Schneider Electric XPSMCMCP0802 Controller 8 Input 2 Output Screw Term
$576.00

Description

This Modicon MCM safety controller CPU is supplied with 24Vdc, has 8 safe digital inputs, 2 start/restart interlock inputs, 2 output OSSD pairs, 4 test outputs and 2 status outputs and is fitted with captive screw clamp terminals. It embeds a Mini USB 2.0 connector to receive the configuration done with the software EcoStruxure Machine Expert - HVAC. It is an appropriate solution for machines with a small number of safety functions requiring the configuration flexibility of a safety controller. It can be used as standalone or with fourteen expansion modules. The system is expandable up to 128 inputs, 16 outputs and up to 32 diagnostic status outputs, ideal for machines requiring multiple safety function monitoring. This safety controller CPU figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, inputs status, communication, master enable, restart signal, output channels). It is a CPU with a rated supply voltage of 24V DC and a maximum power dissipation of 3W. It is furnished with spring clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. It weighs 0.25kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The safe controller CPU Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The safety controller CPU instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
