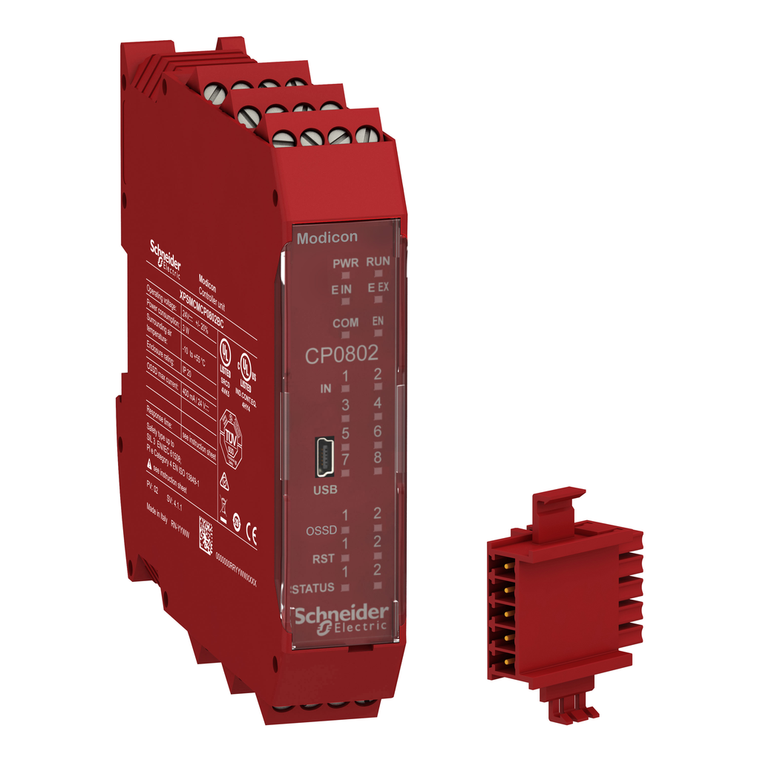

Schneider Electric XPSMCMCP0802BC Controller 8 Input 2 Output Screw Termin

(No reviews yet) Write a Review
SKU:
XPSMCMCP0802BC
UPC:
3606480992049
Condition:
New
Eu Rohs Directive:
Not applicable, out of EU RoHS legal scope
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Overvoltage Category:
II
Range Of Product:
Modicon Safety automation
Cable Cross Section:
0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end,
[Us] Rated Supply Voltage:
24 V - 20...20 % DC
Vibration Resistance:
+/-0.35 mm 10-55 Hz)IEC 61496-1
Service Life:
20 year(s)
Width:
22.5 mm
Reach Free Of Svhc:
Yes
China Rohs Regulation:
X
Mercury Free:
Yes
Connections - Terminals:
2 captive screw terminals, removable terminal block || 1 captive screw terminals, removable terminal block
Maximum Number Of I/O Expansion Module:
14 128 input || 14 16 output
Product Or Component Type:
modular safety controller CPU kit
Discrete Output Current:
400 mA
Relative Humidity:
10-95 %
Data Storage Equipment:
SD card optional)
Pollution Degree:
2
Device Short Name:
XPSMCM
Depth:
114.5 mm
Number Of Outputs:
2 safety outputs OSSD contactor/drive connection || 4 test line control outputs || 2 configurable diagnostic connection
Safety Level:
can reach category 4 ISO 13849-1 || can reach PL = e ISO 13849-1 || type 4 IEC 61496-1 || SILCL 3 IEC 62061
Discrete Input Voltage:
24 V
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Quality Labels:
CE
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 61800-5-1
Synchronisation Time Between Inputs:
< 0.5 ms
Height:
99 mm
Function Of Module:
emergency stop ISO 13850 || guard monitoring EN/ISO 14119 || enabling switch monitoring IEC 60947-5-1 || light curtain monitoring IEC 61496-1 || foot switch monitoring IEC 60947-5-1 || magnetic switch monitoring EN/ISO 14119 || two-hand control EN 57
Shock Resistance:
10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Ambient Air Temperature For Operation:
-10-55 °C
Ambient Air Temperature For Storage:
-20-85 °C
Number Of Inputs:
8 digital input connection || 2 digital interlock start/restart or external device monitoring
Safety Reliability Data:
PFHd = 6.06E-9 1/h || DC > 99 % || MTTFd < 100 years high
Inductive Load:
30 mH
Pvc Free:
Yes
Kit Composition:
1 safety controller CPU || 1 backplane expansion connector
Ip Degree Of Protection:
IP20
Load Capacitance:
0.82 µF
Net Weight:
0.26 kg
Discrete Input Type:
PNP || safety input
Electromagnetic Compatibility:
electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test lev
Standards:
IEC 61800-5-1 || IEC 61496-1 || ISO 13849-1 || IEC 62061 || IEC 61508
Electrical Connection:
screw terminal
Local Signalling:
1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 1 LED orange COM communication || 1 LED blue EN master enable || 8 LEDs yellow IN input status || 2 LEDs green/red OUT outpu
Insulation:
250 V AC between power supply and housing IEC 61800-5-1
Discrete Output Type:
PNP
Mounting Support:
omega 35 mm DIN rail EN 50022
Discrete Input Current:
400 mA
Product Certifications:
RCM || cULus || TÜV
Power Dissipation In W:
3 W
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Integrated Connection Type:
backplane expansion bus || USB 2.0 port
Catalog:
View
Datasheet:
View
$623.00

Description

This Modicon MCM safety controller CPU is supplied with 24Vdc, has 8 safe digital inputs, 2 start/restart interlock inputs, 2 output OSSD pairs, 4 test outputs and 2 status outputs and is fitted with captive screw clamp terminals. It embeds a Mini USB 2.0 connector to receive the configuration done with the software EcoStruxure Machine Expert - HVAC. It is an appropriate solution for machines with a small number of safety functions requiring the configuration flexibility of a safety controller. It can be used as standalone or with fourteen expansion modules. The system is expandable up to 128 inputs, 16 outputs and up to 32 diagnostic status outputs, ideal for machines requiring multiple safety function monitoring. This safety controller CPU figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, inputs status, communication, master enable, restart signal, output channels). It is a CPU with a rated supply voltage of 24V DC and a maximum power dissipation of 3W. It is furnished with spring clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. It weighs 0.26kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The safe controller CPU Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The kit includes 1 x safety controller CPU and 1 x backplane expansion connector. The safety controller CPU instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
