Schneider Electric XPSMCMCP0802G Controller 8 Input 2 Output Spring Term
Schneider Electric
$590.00

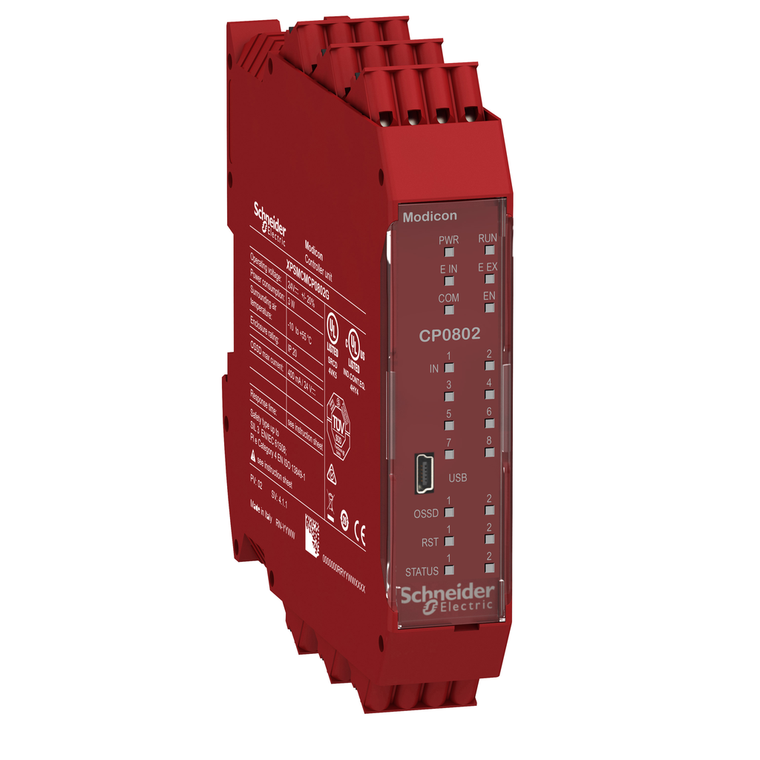

This Modicon MCM safety controller CPU is supplied with 24Vdc, has 8 safe digital inputs, 2 start/restart interlock inputs, 2 output OSSD pairs, 4 test outputs and 2 status outputs and is fitted with captive spring clamp terminals. It embeds a Mini USB 2.0 connector to receive the configuration done with the software EcoStruxure Machine Expert - HVAC. It is an appropriate solution for machines with a small number of safety functions requiring the configuration flexibility of a safety controller. It can be used as standalone or with fourteen expansion modules. The system is expandable up to 128 inputs, 16 outputs and up to 32 diagnostic status outputs, ideal for machines requiring multiple safety function monitoring. This safety controller CPU figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, inputs status, communication, master enable, restart signal, output channels). It is a CPU with a rated supply voltage of 24V DC and a maximum power dissipation of 3W. It is furnished with spring clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. It weighs 0.25kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The safe controller CPU Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The safety controller CPU instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
- Depth:
- 114.5 mm
- Maximum Number Of I/O Expansion Module:
- 14 128 input || 14 16 output
- Discrete Input Type:
- safety input || PNP
- Number Of Outputs:
- 2 safety outputs OSSD contactor/drive connection || 4 test line control outputs || 2 configurable diagnostic connection
- Relative Humidity:
- 10-95 %
- Height:
- 99 mm
- Width:
- 22.5 mm
- Environmental Disclosure:
- ENVPEP1409010EN
- Discrete Input Current:
- 400 mA
- Local Signalling:
- 1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 1 LED orange COM communication || 1 LED blue EN master enable || 8 LEDs yellow IN input status || 2 LEDs green/red OUT outpu
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Discrete Input Voltage:
- 24 V
- Quality Labels:
- CE
- Safety Reliability Data:
- PFHd = 6.06E-9 1/h || DC > 99 % || MTTFd < 100 years high
- Overvoltage Category:
- II
- Ambient Air Temperature For Operation:
- -10-55 °C
- Load Capacitance:
- 0.82 µF
- Number Of Inputs:
- 8 digital input connection || 2 digital interlock start/restart or external device monitoring
- Product Or Component Type:
- safety controller CPU
- Inductive Load:
- 30 mH
- Mercury Free:
- Yes
- Safety Level:
- can reach category 4 EN/ISO 13849-1 || can reach PL = e EN/ISO 13849-1 || type 4 EN/IEC 61496-1 || SILCL 3 IEC 62061
- Discrete Output Type:
- PNP
- Sustainable Offer Status:
- Green Premium product
- Cable Cross Section:
- 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, wit
- [Us] Rated Supply Voltage:
- 24 V - 20...20 % DC
- Pvc Free:
- Yes
- Data Storage Equipment:
- SD card optional)
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Range Of Product:
- Modicon Safety automation
- Shock Resistance:
- 10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV EN/IEC 61800-5-1
- Pollution Degree:
- 2
- Electromagnetic Compatibility:
- electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to EN/IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to EN/IEC 61000-4-2 || susceptibility to electromagnetic fields - te
- Net Weight:
- 0.25 kg
- Discrete Output Current:
- 400 mA
- Electrical Connection:
- spring terminal
- Vibration Resistance:
- +/-0.35 mm 10-55 Hz)EN/IEC 61496-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Function Of Module:
- emergency stop EN/ISO 13850 || guard monitoring EN/ISO 14119 || enabling switch monitoring EN/IEC 60947-5-1 || light curtain monitoring EN/IEC 61496-1 || foot switch monitoring EN/IEC 60947-5-1 || light curtain monitoring EN/ISO 14119 || switch monit
- Product Certifications:
- RCM || TÃV || cULus
- Device Short Name:
- XPSMCM
- Power Dissipation In W:
- 3 W
- Insulation:
- 250 V AC between power supply and housing EN/IEC 61800-5-1
- Synchronisation Time Between Inputs:
- < 0.5 ms
- Reach Free Of Svhc:
- Yes
- Mounting Support:
- omega 35 mm DIN rail EN 50022
- Service Life:
- 20 year(s)
- Ip Degree Of Protection:
- IP20
- Rohs Exemption Information:
- Yes
- Integrated Connection Type:
- backplane expansion bus || USB 2.0 port
- Ambient Air Temperature For Storage:
- -20-85 °C
- Standards:
- EN/ISO 13849-1 || IEC 62061 || EN/IEC 61800-5-1 || EN/IEC 61496-1 || EN/IEC 61508
- Circularity Profile:
- ENVEOLI1409010EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Connections - Terminals:
- 1 spring terminals, removable terminal block || 2 spring terminals, removable terminal block
- China Rohs Regulation:
- X
