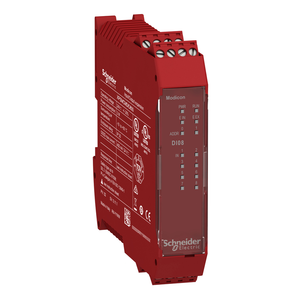

Schneider Electric XPSMCMDI1600 16 Input Expansion Screw Term

(No reviews yet) Write a Review

Write a Review

Schneider Electric XPSMCMDI1600 16 Input Expansion Screw Term

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XPSMCMDI1600

UPC:

3606480748622

MPN:

Condition:

New

Cable Cross Section:

0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end,

Local Signalling:

1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 16 LEDs yellow IN input status

Quality Labels:

CE

Discrete Output Type:

PNP

Insulation:

250 V AC between power supply and housing IEC 61800-5-1

Service Life:

20 year(s)

Product Certifications:

RCM || TÜV || cULus

Reach Free Of Svhc:

Yes

Rohs Exemption Information:

Yes

Discrete Input Type:

isolated

Electrical Connection:

screw terminal

Overvoltage Category:

II

[Us] Rated Supply Voltage:

24 V - 20...20 % DC

Discrete Input Voltage:

24 V DC

Height:

99 mm

Ambient Air Temperature For Storage:

-20-85 °C

Pollution Degree:

2

Electromagnetic Compatibility:

electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test lev

Circularity Profile:

ENVEOLI1409010EN

Range Of Product:

Preventa Safety automation

Number Of Outputs:

4 test line control

Relative Humidity:

10-95 %

Depth:

22.5 mm

Ambient Air Temperature For Operation:

-10-55 °C

Pvc Free:

Yes

Safety Level:

can reach category 4 ISO 13849-1 || can reach PL = e ISO 13849-1 || can reach SIL 3 IEC 61508 || SILCL 3 IEC 62061

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Shock Resistance:

10 gn 16 ms) 1000 shocks on each axis IEC 61496-1

Function Of Module:

monitoring safety detection discrete input || monitoring safety dialogue discrete input

Sustainable Offer Status:

Green Premium product

Number Of Terminal Blocks:

6

Net Weight:

0.25 kg

Width:

114.5 mm

Connections - Terminals:

2 captive screw clamp terminals, removable terminal block || 1 captive screw clamp terminals, removable terminal block

Environmental Disclosure:

ENVPEP1409010EN

Vibration Resistance:

+/-0.35 mm 10-55 Hz)IEC 61496-1

Product Or Component Type:

safe input expansion module

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

China Rohs Regulation:

X

Ip Degree Of Protection:

IP20 enclosure)

Power Dissipation In W:

3 W

Number Of Inputs:

16 digital

Device Short Name:

XPSMCM

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Safety Reliability Data:

DC > 99 % || MTTFd < 100 years high || PFHd = 7.09E-9 1/h

Integrated Connection Type:

backplane expansion bus

Power Consumption In W:

3 W

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 61800-5-1

Mercury Free:

Yes

Standards:

IEC 61800-5-1 || IEC 61508 || ISO 13849-1 || IEC 62061

Mounting Support:

omega 35 mm DIN rail EN 50022
