Schneider Electric

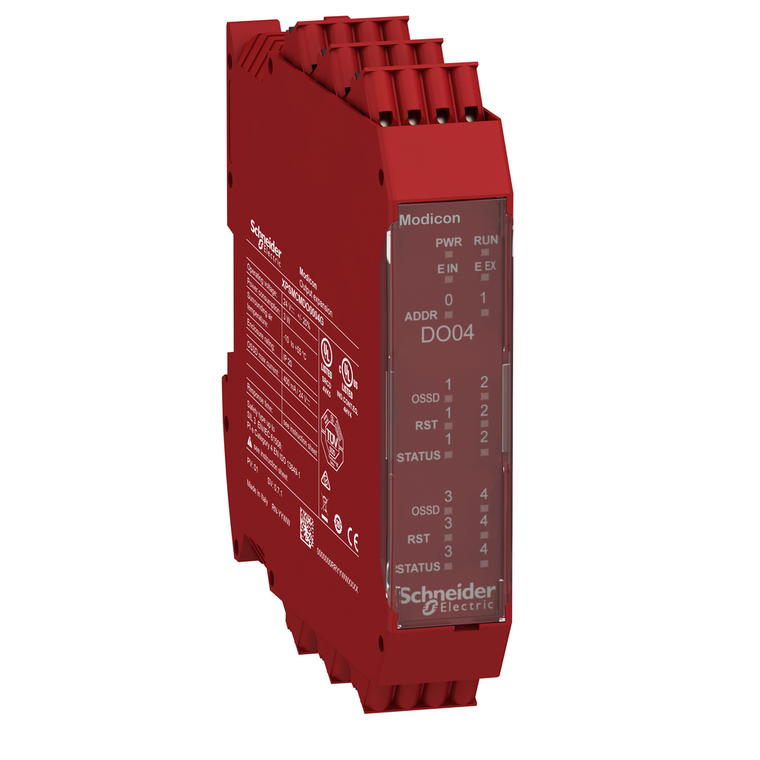

Schneider Electric XPSMCMDO0004G 4 Do Pairs Expansion Spring Term

(No reviews yet) Write a Review
SKU:
XPSMCMDO0004G
UPC:
3.60648E+12
Condition:
New
Pollution Degree:
2
Number Of Outputs:
4 safety outputs OSSD contactor/drive connection || 4 configurable diagnostic connection
Device Short Name:
XPSMCM
Insulation:
250 V AC between power supply and housing IEC 61800-5-1
Height:
99 mm
Overvoltage Category:
II
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 61800-5-1
China Rohs Regulation:
X
Rohs Exemption Information:
Yes
Mounting Support:
omega 35 mm DIN rail EN 50022
Vibration Resistance:
+/-0.35 mm 10-55 Hz)IEC 61496-1
Mercury Free:
Yes
Number Of Inputs:
4 digital external device monitoring
Depth:
22.5 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Relative Humidity:
10-95 %
Reach Free Of Svhc:
Yes
Electromagnetic Compatibility:
electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test lev
Load Type:
resistive load
Sustainable Offer Status:
Green Premium product
Safety Level:
can reach category 4 ISO 13849-1 || can reach PL = e ISO 13849-1 || can reach SIL 3 IEC 61508 || SILCL 3 IEC 62061
Range Of Product:
Preventa Safety automation
Ambient Air Temperature For Operation:
-10-55 °C
Environmental Disclosure:
ENVPEP1409010EN
Discrete Input Type:
isolated
Connections - Terminals:
1 spring clamp terminals, removable terminal block || 2 spring clamp terminals, removable terminal block
Width:
114.5 mm
Local Signalling:
1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 4 LEDs green/red OUT output status || 4 LEDs yellow RST restart signal || 4 LEDs yellow S
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Discrete Output Current:
400 mA || 100 mA
Service Life:
20 year(s)
Integrated Connection Type:
backplane expansion bus
[Us] Rated Supply Voltage:
24 V - 20...20 % DC
Function Of Module:
monitoring safety actuators discrete output
Discrete Input Voltage:
24 V DC
Shock Resistance:
10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Net Weight:
0.25 kg
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Discrete Output Voltage:
24 V DC
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Standards:
IEC 61508 || IEC 61800-5-1 || ISO 13849-1 || IEC 62061
Cable Cross Section:
0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel || 0.2-2.5 mm² - AWG 24...AWG 14 solid without
Output Load:
60 Ohm
Ambient Air Temperature For Storage:
-20-85 °C
Quality Labels:
CE
Product Certifications:
RCM || cULus || TÜV
Power Consumption In W:
3 W
Power Dissipation In W:
3 W
Discrete Output Type:
PNP
Pvc Free:
Yes
Circularity Profile:
ENVEOLI1409010EN
Number Of Terminal Blocks:
6
Electrical Connection:
spring terminal
Product Or Component Type:
safe output expansion module
Safety Reliability Data:
DC > 99 % || MTTFd < 100 years high || PFHd = 3.44E-9 1/h
Ip Degree Of Protection:
IP20 enclosure)
Catalog:
View
Datasheet:
View
$566.00

Description

This Modicon MCM safe output expansion module has 4 start/restart interlock inputs, 4 output OSSD pairs and 4 status outputs and is fitted with captive spring clamp terminals. It is designed to monitor remotely your safe I/O. It is furnished with spring clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. This safe I/O module figures configurable filters and delays for each single input, configurable output activation and de-activation delays, independent control of pairs of outputs, and configurable diagnostic output signals. This module figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, input and output status). This safe I/O module is connected to the safe controller via the backplane expansion connector. It weighs 0.25kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. This safe I/O module is certified by RCM, CULus and TÜV. It can reach such safety levels as category 4 conforming to EN/ISO 13849-1, PLe conforming to EN/ISO 13849-1, Type 4 conforming to EN/IEC 61496-1, and SILCL3 conforming to IEC 62061. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The module instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
