Schneider Electric XPSMCMEN0100HTG Speed Mon. 1 Htl Exp. Spring Term

(No reviews yet) Write a Review
SKU:
XPSMCMEN0100HTG
UPC:
3.60648E+12
Condition:
New
Pvc Free:
Yes
Width:
114.5 mm
Ambient Air Temperature For Operation:
-10-55 °C
Ambient Air Temperature For Storage:
-20-85 °C
Sensor Type:
inductive proximity sensor
Power Dissipation In W:
3 W
Electrical Connection:
spring terminal
Standards:
EN/IEC 61496-1 || EN/IEC 61508 || IEC 62061 || EN/IEC 61800-5-1 || EN/ISO 13849-1
Number Of Terminal Blocks:
4
Pollution Degree:
2
Local Signalling:
1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 1 LED yellow ENC encoder connection status || 2 LEDs yellow PROX proximity sensors connec
Connections - Terminals:
1 spring clamp terminals, removable terminal block || 2 spring clamp terminals, removable terminal block
Product Or Component Type:
safe speed monitoring module
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation:
X
Electromagnetic Compatibility:
electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to EN/IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to EN/IEC 61000-4-2 || susceptibility to electromagnetic fields - te
Cable Cross Section:
0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without
[Uimp] Rated Impulse Withstand Voltage:
4 kV EN/IEC 61800-5
Environmental Disclosure:
ENVPEP1409010EN
Electrical Connection:
1 connector RJ45 EIA/TIA-568-A
Integrated Connection Type:
backplane expansion bus
Overvoltage Category:
II
Function Of Module:
speed monitoring
[Us] Rated Supply Voltage:
24 V - 20...20 % DC
Circularity Profile:
ENVEOLI1409010EN
Service Life:
20 year(s)
Sustainable Offer Status:
Green Premium product
Product Certifications:
cULus || RCM || TÜV
Shock Resistance:
10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1
Device Short Name:
XPSMCM
Relative Humidity:
10-95 %
Vibration Resistance:
+/-0.35 mm 10-55 Hz)EN/IEC 61496-1
Mercury Free:
Yes
Discrete Input Voltage:
24 V DC
Mounting Support:
omega 35 mm DIN rail EN 50022
Quality Labels:
CE
Net Weight:
0.28 kg
Range Of Product:
Preventa Safety automation
Depth:
22.5 mm
Rohs Exemption Information:
Yes
Ip Degree Of Protection:
IP20 enclosure)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Power Consumption In W:
3 W
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc:
Yes
Insulation:
250 V AC between power supply and housing EN/IEC 61800-5-1
Height:
99 mm
Maximum Input Frequency:
5 kHz sensor || 300 kHz encoder HTL
Safety Level:
can reach category 4 EN/ISO 13849-1 || can reach PL = e EN/ISO 13849-1 || type 4 EN/IEC 61496-1 || SILCL 3 IEC 62061
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Schneider Electric XPSMCMEN0100HTG Speed Mon. 1 Htl Exp. Spring Term
  • Schneider Electric XPSMCMEN0100HTG Speed Mon. 1 Htl Exp. Spring Term
$1,550.25

Description

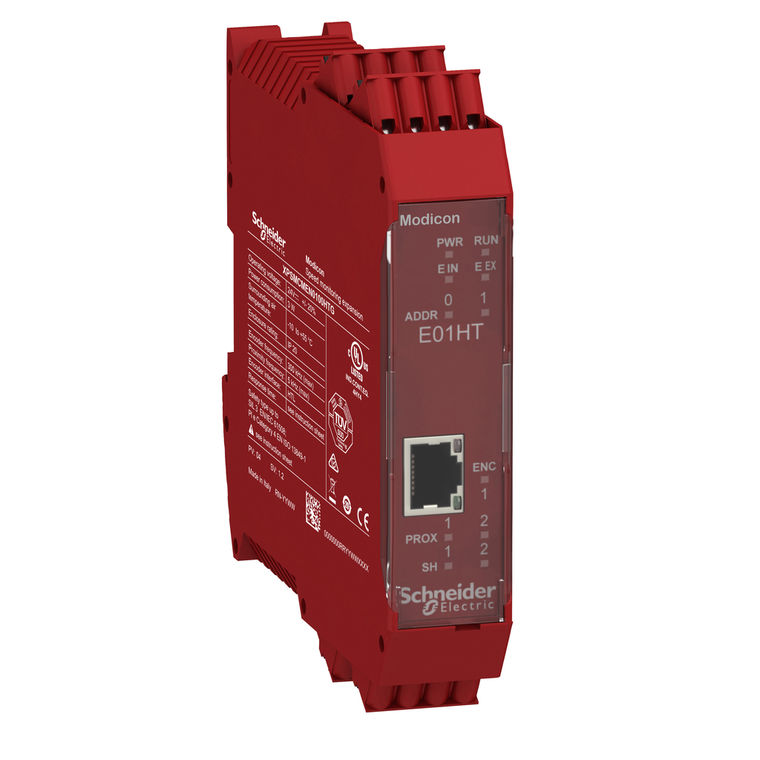

This Modicon MCM safe speed monitoring module has 1 HTL encoder input (with RJ45 connectors) and 2 proximity sensor inputs (connection via terminal) and is fitted with captive spring clamp terminals. It is designed to monitor zero speed control, max speed (limited speed), speed range and direction. It has a rated supply voltage of 24V DC. It offers up to four logically selectable limited speed thresholds (freely configurable via SoSafe Configurable software) for each logical intput (axis), and a maximum input frequency of 500kHz (for encoders) and 5kHz for proximity sensors. It completes your safety CPU with safe-speed monitoring function, ideal for cutting machines like band-saw, circular saw and grinding machines. This module figures LEDs on its front face, displaying the status (power supply, reset, internal or external errors, node address, encoder or proximity sensors connection status, speed monitoring status). The safe speed monitoring module is connected to the safety controller via the backplane expansion connector. It weighs 0.28kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. This module can reach such safety levels as category 4 conforming to EN/ISO 13849-1, PL = e conforming to EN/ISO 13849-1, Type 4 conforming to EN/IEC 61496-1, and SILCL 3 conforming to IEC 62061. The modular safety controllers Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The safe speed monitoring module instals on Omega 35mm DIN rail conforming to EN 50022, and is connected to the safety controller via the backplane expansion connector. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
