Schneider Electric XPSUAB11CC Safety Module Uab Plc 24V Spring

Schneider Electric XPSUAB11CC Safety Module Uab Plc 24V Spring

Schneider Electric
SKU:
XPSUAB11CC
|
UPC:
3606489601560
Availability:
Contact us to confirm availability and lead times.
$205.80
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

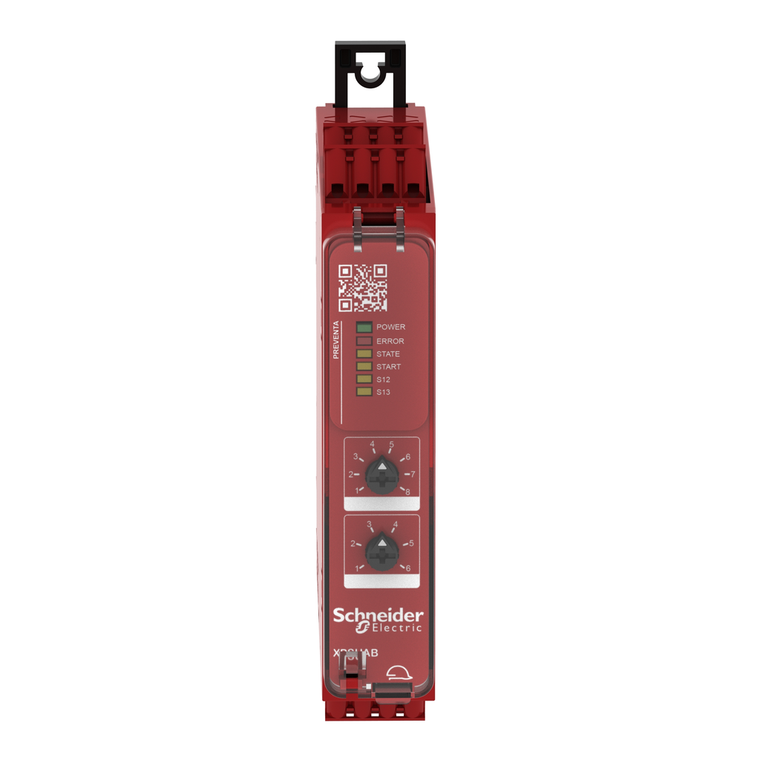

This safety relay is designed for monitoring Emergency stop, Antivalent contacts, Guard switch, Magnetic switch, Proximity safety switch, PNP sensor, RFID safety switch, Safety light curtain or Two-hand control stations. The safety relay is powered with 24V AC/DC, and equipped with a spring removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 1 safety input, 2 ON/OFF configurable pulsed outputs, 1 single changeover safety output , and 1 solid state diagnostic output with complete status information. The maximum safety level achieved by this safety relay is PLc/Category 1 conforming to ISO 13849-1, SILCL 1 conforming to IEC 62061 and SIL 1 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TÜV, EAC, CCC and KC marking. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.
Additional Information
Net Weight:
0.200 kg
[Us] Rated Supply Voltage:
24 V AC - 15...10 % || 24 V DC - 20...20 %
Auxiliary Contact Composition:
1 C/O
Rohs Exemption Information:
Yes
Circularity Profile:
ENVEOLI1811003EN
Depth:
120 mm
Number Of Outputs:
2 on/off configurable pulsed output
Maximum Line Resistance:
500 Ohm
[Ui] Rated Insulation Voltage:
250 V 2)IEC 60947-1
Function Of Module:
emergency stop monitoring 1-channel wiring || guard monitoring 1-channel wiring || monitoring 1 PNP sensor || monitoring two-hand control station type IIIA || magnetic switch monitoring || light curtain monitoring || RFID switch || monitoring of elec
Input Protection Type:
internal, electronic
Associated Fuse Rating:
6 A gG relay output IEC 60947-1
Product Certifications:
TÜV || cULus
Power Consumption In W:
1.5 W 24 V DC
Type Of Start:
automatic/manual/monitored
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Connections - Terminals:
removable spring terminal block, 0.2...2.5 mm² solid or flexible || removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductor || removable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductor || remova
Input Compatibility:
normally closed circuit ISO 14119 || XC limit switch ISO 14119 || mechanical contact ISO 14119 || normally closed circuit ISO 13850 || antivalent pair ISO 14119 || OSSD pair IEC 61496-1-2 || two-hand control EN 574/ISO 13851-III A || 3-wire proximity
Safety Reliability Data:
MTTFd >= 30 years ISO 13849-1 || Dcavg < 60 % ISO 13849-1 || PFHd = 1177E-09 1/h ISO 13849-1 || HFT = 0 IEC 62061 || PFHd = 1177E-09 1/h IEC 62061 || SFF > 60% IEC 62061 || HFT=0 IEC 61508-1 || PFHd = 1177E-09 1/h IEC 61508-1 || SFF > 60% IEC 61508-1
[Ith] Conventional Free Air Thermal Current:
0.125
Pvc Free:
Yes
Product Or Component Type:
safety module
Mounting Support:
35 mm symmetrical DIN rail
Ip Degree Of Protection:
IP20 terminals)IEC 60529 || IP40 housing)IEC 60529 || IP54 mounting area)IEC 60529
Environmental Disclosure:
ENVPEP1811003EN
Safety Module Name:
XPSUAB
Minimum Output Voltage:
15 V relay output
Sustainable Offer Status:
Green Premium product
Power Consumption In Va:
3.5 VA 24 V AC 50/60 Hz
Minimum Output Current:
10 mA relay output
Relative Humidity:
5-95 % non-condensing
Safety Level:
can reach PL c/category 1 ISO 13849-1 || can reach SILCL 1 IEC 62061 || can reach SIL 1 IEC 61508
Electrical Circuit Type:
NC pair || PNP pair || antivalent pair || OSSD pair
China Rohs Regulation:
X
Synchronisation Time Between Inputs:
0.5 s || 2.2 s
[Ie] Rated Operational Current:
5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact || 3 A AC-1 for normally closed relay contact || 1 A AC-15 for normally clo
[Uimp] Rated Impulse Withstand Voltage:
4 kV II IEC 60947-1
Standards:
IEC 60947-5-1 || IEC 61508-1 functional safety standard || IEC 61508-2 functional safety standard || IEC 61508-3 functional safety standard || IEC 61508-4 functional safety standard || IEC 61508-5 functional safety standard || IEC 61508-6 functional
Width:
22.5 mm
Ambient Air Temperature For Operation:
-25-55 °C
Number Of Inputs:
1 safety input 24 V DC 5
Input/Output Type:
semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
Local Signalling:
for power ON LED (green) || for error LED (red) || for start LED (yellow) || for safety status LED (yellow) || for safety input S12 LED (yellow) || for safety input S13 LED (yellow)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Height:
100 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Maximum Response Time On Input Open:
20 ms
Range Of Product:
Harmony Safety Automation
Safety Module Application:
for electrical monitoring of two-hand control stations || for application with safety switchover contact || for emergency stop, guard and light curtain monitoring || monitoring antivalent contacts
