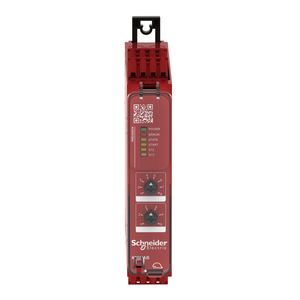

Schneider Electric XPSUAB11CP Safety Module Uab Plc 24V Screw

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XPSUAB11CP Safety Module Uab Plc 24V Screw

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XPSUAB11CP

UPC:

3606489601577

MPN:

Condition:

New

Connections - Terminals:

removable screw terminal block, 0.2...2.5 mm² solid or flexible || removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor || removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor || removable

[Us] Rated Supply Voltage:

24 V AC - 15...10 % || 24 V DC - 20...20 %

Input Compatibility:

normally closed circuit ISO 14119 || XC limit switch ISO 14119 || mechanical contact ISO 14119 || normally closed circuit ISO 13850 || antivalent pair ISO 14119 || OSSD pair IEC 61496-1-2 || two-hand control EN 574/ISO 13851-III A || 3-wire proximity

Relative Humidity:

5-95 % non-condensing

Ip Degree Of Protection:

IP20 terminals)IEC 60529 || IP40 housing)IEC 60529 || IP54 mounting area)IEC 60529

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mercury Free:

Yes

Auxiliary Contact Composition:

1 C/O

Width:

22.5 mm

Minimum Output Voltage:

15 V relay output

Power Consumption In W:

1.5 W 24 V DC

Synchronisation Time Between Inputs:

0.5 s || 2.2 s

[Uimp] Rated Impulse Withstand Voltage:

4 kV II IEC 60947-1

Electrical Circuit Type:

NC pair || PNP pair || antivalent pair || OSSD pair

Mounting Support:

35 mm symmetrical DIN rail

Range Of Product:

Harmony Safety Automation

Maximum Line Resistance:

500 Ohm

[Ith] Conventional Free Air Thermal Current:

0.125

Type Of Start:

automatic/manual/monitored

Safety Module Name:

XPSUAB

[Ui] Rated Insulation Voltage:

250 V 2)IEC 60947-1

Product Certifications:

TÜV || cULus

Sustainable Offer Status:

Green Premium product

Input/Output Type:

semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Safety Reliability Data:

MTTFd >= 30 years ISO 13849-1 || Dcavg < 60 % ISO 13849-1 || PFHd = 1177E-09 1/h ISO 13849-1 || HFT = 0 IEC 62061 || PFHd = 1177E-09 1/h IEC 62061 || SFF > 60% IEC 62061 || HFT=0 IEC 61508-1 || PFHd = 1177E-09 1/h IEC 61508-1 || SFF > 60% IEC 61508-1

Height:

100 mm

Number Of Inputs:

1 safety input 24 V DC 5

Ambient Air Temperature For Operation:

-25-55 °C

Product Or Component Type:

safety module

Net Weight:

0.200 kg

Environmental Disclosure:

ENVPEP1811003EN

Rohs Exemption Information:

Yes

Safety Module Application:

for electrical monitoring of two-hand control stations || for application with safety switchover contact || for emergency stop, guard and light curtain monitoring || monitoring antivalent contacts

China Rohs Regulation:

X

Input Protection Type:

internal, electronic

Number Of Outputs:

2 on/off configurable pulsed output

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Safety Level:

can reach PL c/category 1 ISO 13849-1 || can reach SILCL 1 IEC 62061 || can reach SIL 1 IEC 61508

Maximum Response Time On Input Open:

20 ms

Pvc Free:

Yes

Depth:

120 mm

Local Signalling:

for power ON LED (green) || for error LED (red) || for start LED (yellow) || for safety status LED (yellow) || for safety input S12 LED (yellow) || for safety input S13 LED (yellow)

Associated Fuse Rating:

6 A gG relay output IEC 60947-1

Function Of Module:

emergency stop monitoring 1-channel wiring || guard monitoring 1-channel wiring || monitoring 1 PNP sensor || monitoring two-hand control station type IIIA || magnetic switch monitoring || light curtain monitoring || RFID switch || monitoring of elec

Power Consumption In Va:

3.5 VA 24 V AC 50/60 Hz

Circularity Profile:

ENVEOLI1811003EN

[Ie] Rated Operational Current:

5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact || 3 A AC-1 for normally closed relay contact || 1 A AC-15 for normally clo

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Minimum Output Current:

10 mA relay output

Standards:

IEC 60947-5-1 || IEC 61508-1 functional safety standard || IEC 61508-2 functional safety standard || IEC 61508-3 functional safety standard || IEC 61508-4 functional safety standard || IEC 61508-5 functional safety standard || IEC 61508-6 functional
