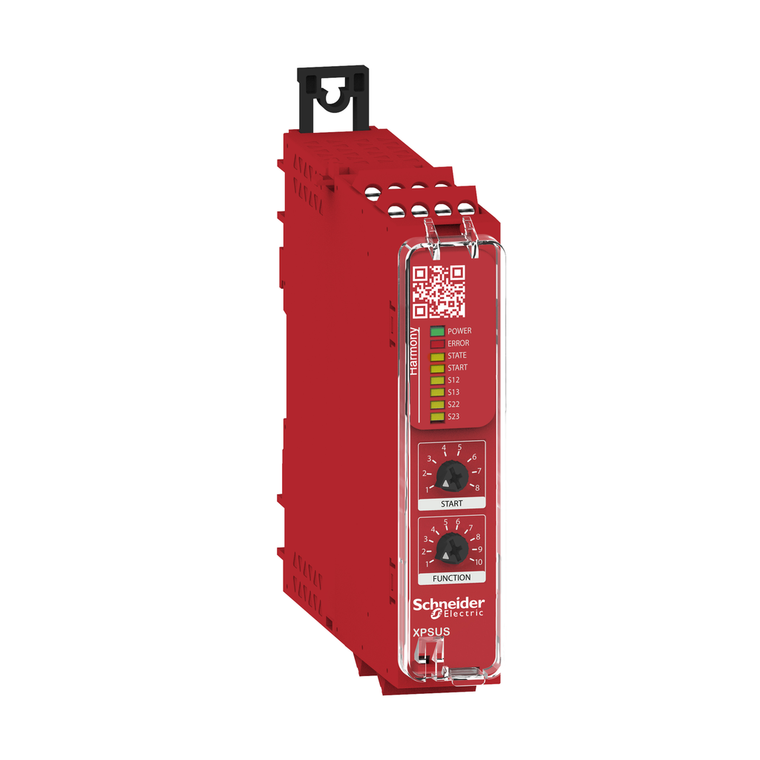

Schneider Electric XPSUS32AP Safety Module Us Cat.4 48-230V Screw

(No reviews yet) Write a Review

Write a Review

Schneider Electric XPSUS32AP Safety Module Us Cat.4 48-230V Screw

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XPSUS32AP

UPC:

3606489601836

MPN:

Condition:

New

Type Of Start:

automatic/manual/monitored

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Pvc Free:

Yes

Rohs Exemption Information:

Yes

Electrical Circuit Type:

NC pair || PNP pair || antivalent pair || OSSD pair

Product Or Component Type:

safety module

Maximum Line Resistance:

500 Ohm

Input Compatibility:

normally closed circuit ISO 14119 || XC limit switch ISO 14119 || mechanical contact ISO 14119 || normally closed circuit ISO 13850 || antivalent pair ISO 14119 || OSSD pair IEC 61496-1-2 || two-hand control EN 574/ISO 13851-III A || two-hand control

Mercury Free:

Yes

Range Of Product:

Harmony Safety Automation

Safety Reliability Data:

MTTFd > 30 years ISO 13849-1 || Dcavg >= 99 % ISO 13849-1 || PFHd = 1.61E-09 ISO 13849-1 || HFT = 1 IEC 62061 || PFHd = 1.61E-09 IEC 62061 || SFF > 99% IEC 62061 || HFT = 1 IEC 61508-1 || PFHd = 1.61E-09 IEC 61508-1 || SFF > 99% IEC 61508-1 || type =

Minimum Output Current:

10 mA relay output

Number Of Inputs:

2 safety input 24 V DC 5

Relative Humidity:

5-95 % non-condensing

Ambient Air Temperature For Storage:

-25-85 °C

Depth:

120 mm

Height:

100 mm

Net Weight:

0.200 kg

Associated Fuse Rating:

10 A gG NO relay output circuit IEC 60947-1

Circularity Profile:

ENVEOLI1811003EN

Power Consumption In W:

3 W 48 V DC

Mounting Support:

35 mm symmetrical DIN rail

Number Of Outputs:

3 on/off configurable pulsed output

China Rohs Regulation:

X

Power Consumption In Va:

8.5 VA 240 V AC 50/60 Hz

Local Signalling:

for power ON LED (green) || for error LED (red) || for safety output status LED (yellow) || for start input LED (yellow) || for safety input S12 LED (yellow) || for safety input S13 LED (yellow) || for safety input S22 LED (yellow) || for safety inpu

[Ie] Rated Operational Current:

5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact || 3 A AC-1 for normally closed relay contact || 1 A AC-15 for normally clo

Safety Level:

can reach PL e/category 4 ISO 13849-1 || can reach SILCL 3 IEC 62061 || can reach SIL 3 IEC 61508

[Uimp] Rated Impulse Withstand Voltage:

4 kV II IEC 60947-1

Standards:

IEC 60947-5-1 || IEC 61508-1 functional safety standard || IEC 61508-2 functional safety standard || IEC 61508-3 functional safety standard || IEC 61508-4 functional safety standard || IEC 61508-5 functional safety standard || IEC 61508-6 functional

Synchronisation Time Between Inputs:

0.5 s || 2 s || 4 s

Connections - Terminals:

removable screw terminal block, 0.2...2.5 mm² solid or flexible || removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor || removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor || removable sc

Minimum Output Voltage:

12 V relay output

Input Protection Type:

internal, electronic

Ip Degree Of Protection:

IP20 terminals)IEC 60529 || IP40 housing)IEC 60529 || IP54 mounting area)IEC 60529

Safety Module Application:

for electrical monitoring of two-hand control stations || monitoring antivalent contacts || for emergency stop, guard and light curtain monitoring || for enabling switch monitoring

Environmental Disclosure:

ENVPEP1811003EN

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Width:

22.5 mm

[Us] Rated Supply Voltage:

48...240 V AC/DC - 10...10 %

Maximum Response Time On Input Open:

20 ms

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Ith] Conventional Free Air Thermal Current:

0.333333333333333

Auxiliary Contact Composition:

2 NO

Input/Output Type:

semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related

Function Of Module:

emergency stop button with 2 NC contacts || guard monitoring with 1 or 2 limit switches || monitoring 2 PNP sensors || magnetic switch monitoring || light curtain monitoring || RFID switch || monitoring of electro-sensitive protection equipment (ESPE

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

[Ui] Rated Insulation Voltage:

250 V 2)IEC 60947-1

Product Certifications:

TÜV || cULus

Sustainable Offer Status:

Green Premium product

Safety Module Name:

XPSUS
