Schneider Electric

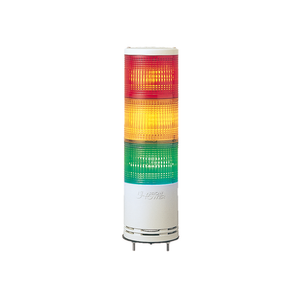

Schneider Electric XVC1M5K Tower Lights 100Mm, 100-240 V, Steady/Bl

SKU:

XVC1M5K

UPC:

3.60648E+12

MPN:

Condition:

New

Rohs Exemption Information:

Yes

Flashing Frequency:

0.7-3 Hz

Ambient Air Temperature For Operation:

-30-50 °C

Product Mounting:

on base

Light Source:

LED steady or flashing red || LED steady or flashing orange || LED steady or flashing green || LED steady or flashing blue || LED steady or flashing clear

Cable Length:

500 mm

Standards:

IEC 60947-1 || IEC 60947-5-1

Mounting Diameter:

100 mm

Circularity Profile:

ENVEOLI1904008EN

Beacon Or Indicator Bank Unit Type:

5 illuminated units

Product Or Component Type:

complete pre-wired monolithic tower light

[Us] Rated Supply Voltage:

100...240 V

Warranty:

18 months

Awg Gauge:

AWG 18 || AWG 22

Electrical Shock Protection Class:

class I IEC 61140

Ambient Air Temperature For Storage:

-35-70 °C

Range Of Product:

Harmony XVC1

Product Certifications:

UL

Cable Cross Section:

0.33-0.33 mm² || 0.83-0.83 mm²

[Uimp] Rated Impulse Withstand Voltage:

4 kV

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Sound Signalling:

without

Net Weight:

1.8 kg

Supply Circuit Type:

AC

Protective Treatment:

TC

China Rohs Regulation:

X

Mercury Free:

Yes

Material:

polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94-V0): top cover

Environmental Disclosure:

ENVPEP1904008EN

Current Consumption:

270 mA

Marking:

CE

Ip Degree Of Protection:

IP54 IEC 60529

Component Name:

XVC

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Height:

528 mm

Brochure:

View

Catalog:

View

Datasheet:

View
