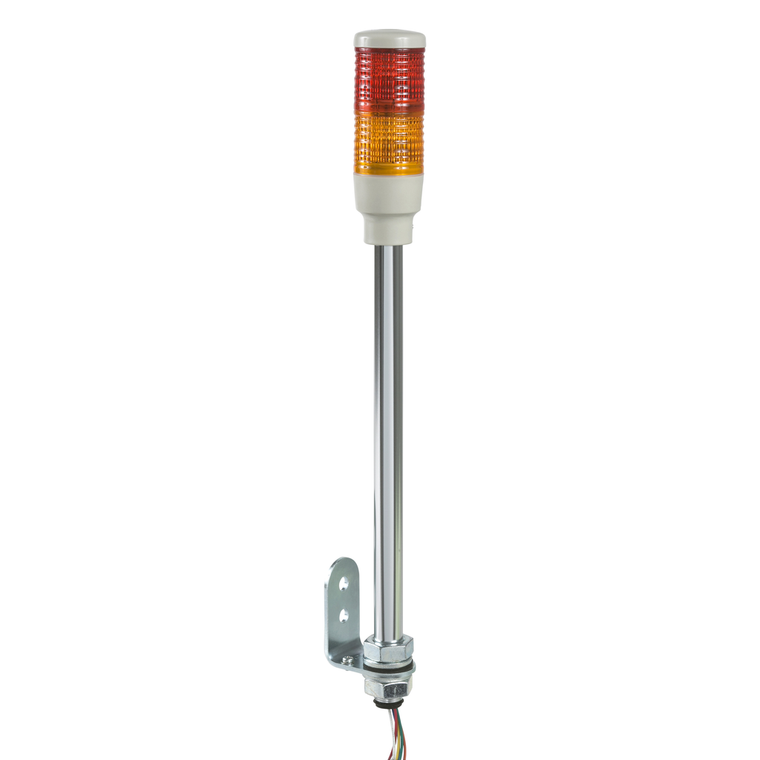

Schneider Electric XVC4B2 Indicating Banks 40Mm Led Pole Mount 24
SKU:
XVC4B2
UPC:
3606480032387
MPN:
Condition:
New
[Uimp] Rated Impulse Withstand Voltage:
0.8 kV
Product Or Component Type:
complete pre-wired monolithic tower light
Rohs Exemption Information:
Yes
Awg Gauge:
AWG 22
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Device Short Name:
XVC
Current Consumption:
50 mA
Warranty:
18 months
Electrical Shock Protection Class:
class I IEC 61140
[Us] Rated Supply Voltage:
24 V
Circularity Profile:
ENVEOLI1904008EN
Cable Cross Section:
0.33-0.33 mm²
Overvoltage Category:
class I IEC 61140
Light Source:
LED steady red || LED steady orange
Supply Circuit Type:
AC/DC
Product Mounting:
on support tube, 17 mm
Range Of Product:
Harmony XVC4
China Rohs Regulation:
X
Mounting Diameter:
40 mm
Environmental Disclosure:
ENVPEP1904008EN
Component Name:
XVC
Flashing Frequency:
1 Hz
Protective Treatment:
TC
Marking:
CE
Material:
polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94HB): top cover || SGP (chromium-plated): support tube
Mercury Free:
Yes
Ip Degree Of Protection:
IP23 vertical surface installation IEC 60529
Net Weight:
0.52 kg
Ambient Air Temperature For Storage:
-35-70 °C
Ambient Air Temperature For Operation:
-10-50 °C
Beacon Or Indicator Bank Unit Type:
2 illuminated units
Sound Signalling:
without
Standards:
IEC 61000-6-2 || IEC 61000-6-3
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 40mm. It is supplied pre-assembled and pre-cabled with 3 illuminated signaling...
This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 40mm. It is supplied pre-assembled and pre-cabled with 3 illuminated signaling...
