Schneider Electric XVC4B35S Indicating Banks 40Mm Led Pole Mount 24

Schneider Electric XVC4B35S Indicating Banks 40Mm Led Pole Mount 24

Schneider Electric
SKU:
XVC4B35S
|
UPC:
3606480032493
$309.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

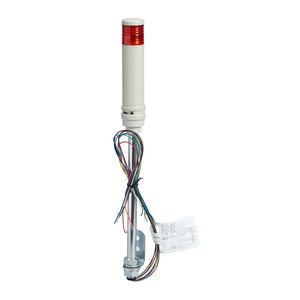

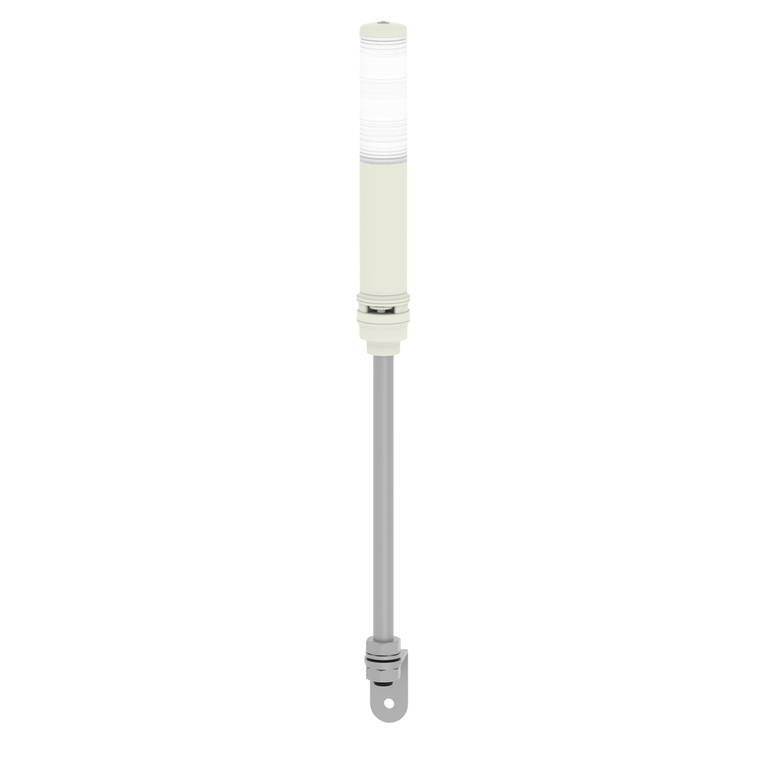

This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 40mm. It is supplied pre-assembled and pre-cabled with 3 illuminated signaling units (red, orange, green), a buzzer and a base mounted on a support tube with a bracket for mounting on horizontal (IP 54) or vertical surface (IP 23). Supply voltage is 24 V AC/DC. It is designed for long distance indication of the operating states of a machine, either visually by means of illuminated signaling units visible through 360° (super bright LED for steady or flashing light), or audibly by means of a buzzer. It is used mainly in the food-processing and medical sectors.
Additional Information
Warranty:
18 months
[Uimp] Rated Impulse Withstand Voltage:
0.8 kV
Range Of Product:
Harmony XVC4
Cable Length:
900 mm
Product Certifications:
UL
Marking:
CE
Current Consumption:
115 mA
Sound Signalling:
buzzer
Mounting Diameter:
40 mm
Supply Circuit Type:
AC/DC
Overvoltage Category:
class I IEC 61140
Ambient Air Temperature For Storage:
-35-70 °C
Environmental Disclosure:
ENVPEP1904008EN
Product Mounting:
on support tube, 17 mm
Flashing Frequency:
1 Hz
Height:
594.5 mm
Cable Cross Section:
0.33-0.33 mm²
Device Short Name:
XVC
Circularity Profile:
ENVEOLI1904008EN
[Us] Rated Supply Voltage:
24 V
Light Source:
LED steady or flashing red || LED steady or flashing orange || LED steady or flashing green
Electrical Shock Protection Class:
class I IEC 61140
Rohs Exemption Information:
Yes
Protective Treatment:
TC
China Rohs Regulation:
X
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Fundamental Frequency:
2.23 kHz
Noise Level:
70-85 dB continuous or intermittent tone)1 m
Ambient Air Temperature For Operation:
-10-50 °C
Standards:
IEC 61000-6-2 || IEC 61000-6-3
Component Name:
XVC
Mercury Free:
Yes
Mounting Location:
on support tube, 17 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Awg Gauge:
AWG 22
Ip Degree Of Protection:
IP23 vertical surface installation IEC 60529
Beacon Or Indicator Bank Unit Type:
3 illuminated units
Material:
polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94HB): top cover || SGP (chromium-plated): support tube
Product Or Component Type:
complete pre-wired monolithic tower light
Net Weight:
0.64 kg
Brochure:
View
Catalog:
View
Datasheet:
View
