Schneider Electric XVC6B35S Indicating Banks 60Mm Led Pole Mount 24

Schneider Electric XVC6B35S Indicating Banks 60Mm Led Pole Mount 24

Schneider Electric
SKU:
XVC6B35S
|
UPC:
3606480032660
$315.00
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

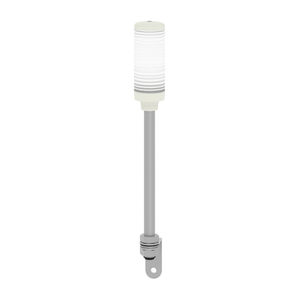

This Harmony XVC6B35S is a 60mm tower light. It has red, orange and green illuminated units flashing mode, with buzzer. It is part of the range Harmony XVC6 diameter 60mm pre-wired monolithic tower lights.
Additional Information
Current Consumption:
115 mA
Beacon Or Indicator Bank Unit Type:
3 illuminated units
Mounting Diameter:
60 mm
China Rohs Regulation:
X
Sound Signalling:
buzzer
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Cable Cross Section:
0.33-0.33 mm²
Circularity Profile:
ENVEOLI1904008EN
Electrical Shock Protection Class:
class I EN/IEC 61140
Ambient Air Temperature For Storage:
-35-70 °C
[Us] Rated Supply Voltage:
24 V
Range Of Product:
Harmony XVC6
Net Weight:
0.98 kg
Cable Length:
550 mm
Ambient Air Temperature For Operation:
-10-50 °C
Noise Level:
70-85 dB continuous or intermittent tone)1 m
Fundamental Frequency:
2.23 kHz
[Uimp] Rated Impulse Withstand Voltage:
0.8 kV
Component Name:
XVC
Product Mounting:
on support tube, 22 mm
Marking:
CE
Product Certifications:
UL
Flashing Frequency:
1 Hz
Warranty:
18 months
Environmental Disclosure:
ENVPEP1904008EN
Ip Degree Of Protection:
IP23 vertical surface installation EN/IEC 60529
Rohs Exemption Information:
Yes
Awg Gauge:
AWG 22
Standards:
EN/IEC 61000-6-3 || EN/IEC 61000-6-2 || EN/IEC 61000-6-4
Mercury Free:
Yes
Height:
563.1 mm
Material:
polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94HB): top cover || STK (chromium-plated): support tube
Supply Circuit Type:
AC/DC
Product Or Component Type:
complete pre-wired monolithic tower light
Protective Treatment:
TC
Light Source:
LED steady or flashing red || LED steady or flashing orange || LED steady or flashing green
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Brochure:
View
Catalog:
View
Datasheet:
View
