Schneider Electric XVC6B3K Indicating Banks 60Mm Led Base Mount 24

(No reviews yet) Write a Review
SKU:
XVC6B3K
UPC:
3.60648E+12
Condition:
New
Range Of Product:
Harmony XVC6
[Uimp] Rated Impulse Withstand Voltage:
0.8 kV
Product Or Component Type:
complete pre-wired monolithic tower light
Supply Circuit Type:
AC/DC
Height:
200.8 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Beacon Or Indicator Bank Unit Type:
3 illuminated units
Component Name:
XVC
Net Weight:
0.3 kg
Standards:
IEC 61000-6-3 || IEC 61000-6-2 || IEC 61000-6-4
Cable Cross Section:
0.33-0.33 mm²
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mounting Diameter:
60 mm
Current Consumption:
75 mA
Electrical Shock Protection Class:
class II IEC 61140
China Rohs Regulation:
X
Ambient Air Temperature For Storage:
-35-70 °C
Protective Treatment:
TC
Flashing Frequency:
1 Hz
Awg Gauge:
AWG 22
Light Source:
LED steady red || LED steady orange || LED steady green
Circularity Profile:
ENVEOLI1904008EN
Cable Length:
850 mm
Environmental Disclosure:
ENVPEP1904008EN
Warranty:
18 months
Ambient Air Temperature For Operation:
-10-50 °C
[Us] Rated Supply Voltage:
24 V
Material:
polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94HB): top cover
Product Mounting:
on base
Mercury Free:
Yes
Ip Degree Of Protection:
IP54 flat surface installation IEC 60529
Sound Signalling:
without
Rohs Exemption Information:
Yes
Product Certifications:
UL
Marking:
CE
Brochure:
View
Catalog:
View
Datasheet:
View
  • Schneider Electric XVC6B3K Indicating Banks 60Mm Led Base Mount 24
  • Schneider Electric XVC6B3K Indicating Banks 60Mm Led Base Mount 24
$215.00

Description

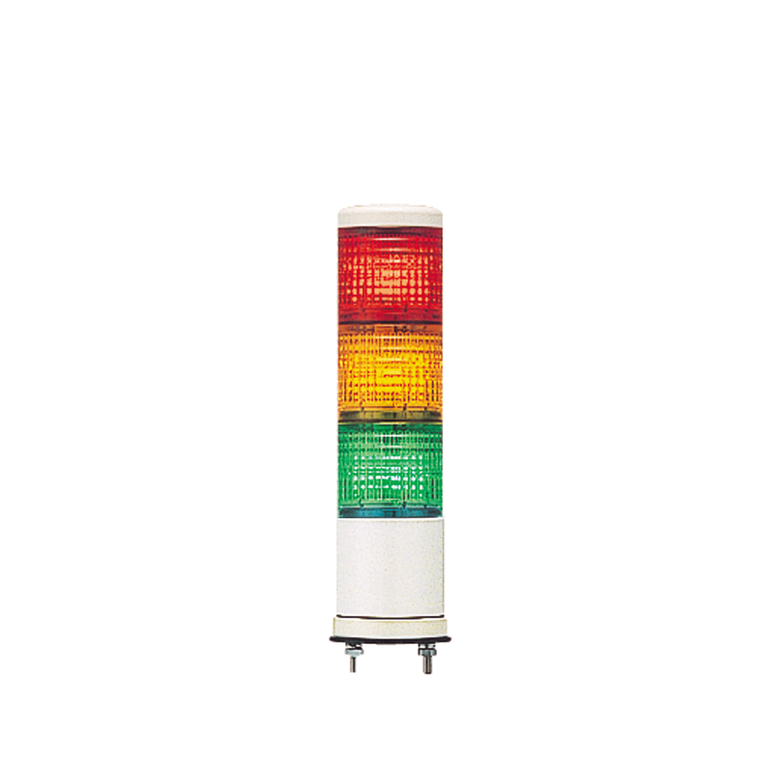

This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 60mm. It is supplied pre-assembled and pre-cabled with 3 illuminated signaling units (red, orange, green) and a base for mounting on horizontal surface. It is designed for long distance indication of the operating states of a machine, visually by means of illuminated signaling units visible through 360°. It features LED for steady light source, and it can be supplied with 24V AC/DC. Its protection index is IP54. It provides PC (polycarbonate) illuminated unit, ABS base unit and PBT + ABS (UL94HB) top cover. It weighs 300g and it is 201mm high. It is used mainly in the semi-conductor factories, on conveyor belts and on small food or drink dispensing machines in the commercial sector. It is CE and UL certified. It is designed to be mounted on horizontal surface thanks to its base fitted with 3 screws.
