Schneider Electric XVC6M3 Tower Lights 60 Mm, 100-240 V, Steady Li
Schneider Electric
$511.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XVC6M3 Tower Lights 60 Mm, 100-240 V, Steady Li

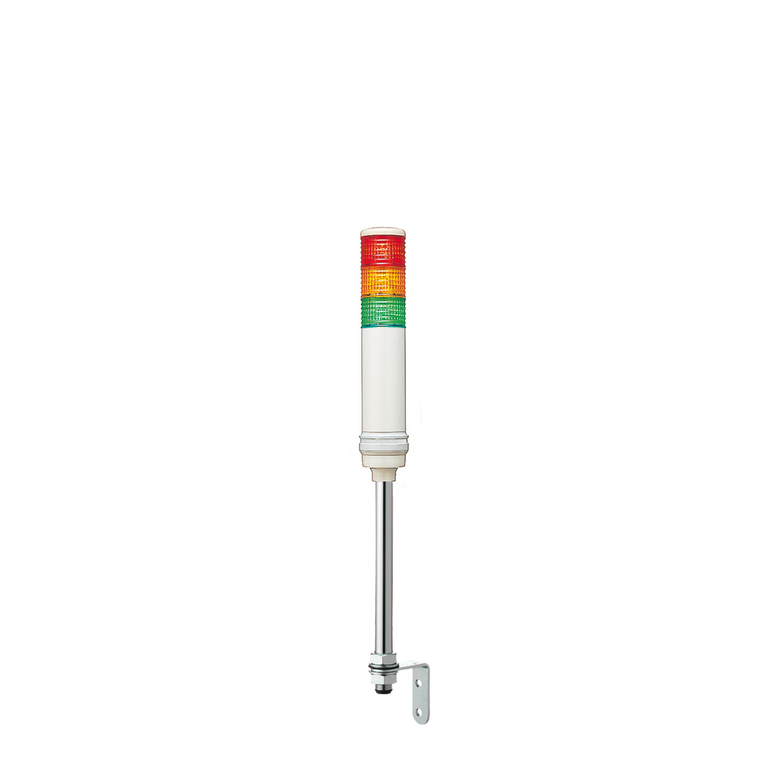

Complete pre wired monolithic tower light, Harmony XVC, plastic, red orange green, 60mm, tube mounting, steady, IP23, 100...240V AC
- Component Name:
- XVC
- Light Source:
- LED steady red || LED steady orange || LED steady green
- Product Mounting:
- on support tube, 22 mm
- Mounting Diameter:
- 60 mm
- Electrical Shock Protection Class:
- class I IEC 61140
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV
- Circularity Profile:
- ENVEOLI1904008EN
- Ambient Air Temperature For Storage:
- -35-70 °C
- Warranty:
- 18 months
- Cable Cross Section:
- 0.83-0.83 mm² || 0.33-0.33 mm²
- Standards:
- IEC 60947-5-1 || IEC 60947-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Awg Gauge:
- AWG 22 || AWG 18
- Marking:
- CE
- Material:
- polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94-V0): top cover
- Environmental Disclosure:
- ENVPEP1904008EN
- Mercury Free:
- Yes
- Cable Length:
- 450 mm || 550 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Protective Treatment:
- TC
- Beacon Or Indicator Bank Unit Type:
- 3 illuminated units
- Range Of Product:
- Harmony XVC6
- Product Or Component Type:
- complete pre-wired monolithic tower light
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Operation:
- -10-50 °C
- Net Weight:
- 1.07 kg
- Height:
- 679.8 mm
- China Rohs Regulation:
- X
- Product Certifications:
- UL
- Sound Signalling:
- without
- Rohs Exemption Information:
- Yes
- [Us] Rated Supply Voltage:
- 100...240 V
- Supply Circuit Type:
- AC
- Ip Degree Of Protection:
- IP23 vertical surface installation IEC 60529
- Current Consumption:
- 60 mA
