Schneider Electric

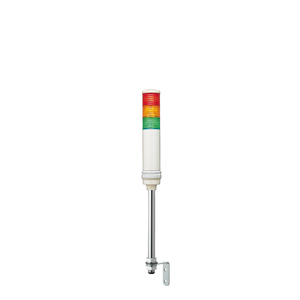

Schneider Electric XVC6M3K Tower Lights 60 Mm, 100-240 V, Steady Li

SKU:

XVC6M3K

UPC:

3606480072628

MPN:

Condition:

New

Light Source:

LED steady red || LED steady orange || LED steady green

China Rohs Regulation:

X

Protective Treatment:

TC

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Height:

312 mm

Ambient Air Temperature For Storage:

-35-70 °C

Product Mounting:

on base

Range Of Product:

Harmony XVC6

Component Name:

XVC

Marking:

CE

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Electrical Shock Protection Class:

class I IEC 61140

Awg Gauge:

AWG 22 || AWG 18

Product Or Component Type:

complete pre-wired monolithic tower light

Warranty:

18 months

Mercury Free:

Yes

Product Certifications:

UL

Rohs Exemption Information:

Yes

Material:

polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94-V0): top cover

Cable Length:

750 mm || 850 mm

Sound Signalling:

without

Ip Degree Of Protection:

IP54 flat surface installation IEC 60529

Circularity Profile:

ENVEOLI1904008EN

[Uimp] Rated Impulse Withstand Voltage:

4 kV

Standards:

IEC 60947-5-1 || IEC 60947-1

[Us] Rated Supply Voltage:

100...240 V

Net Weight:

0.55 kg

Cable Cross Section:

0.83-0.83 mm² || 0.33-0.33 mm²

Supply Circuit Type:

AC

Beacon Or Indicator Bank Unit Type:

3 illuminated units

Mounting Diameter:

60 mm

Ambient Air Temperature For Operation:

-10-50 °C

Environmental Disclosure:

ENVPEP1904008EN

Current Consumption:

60 mA

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Brochure:

View

Catalog:

View

Datasheet:

View
