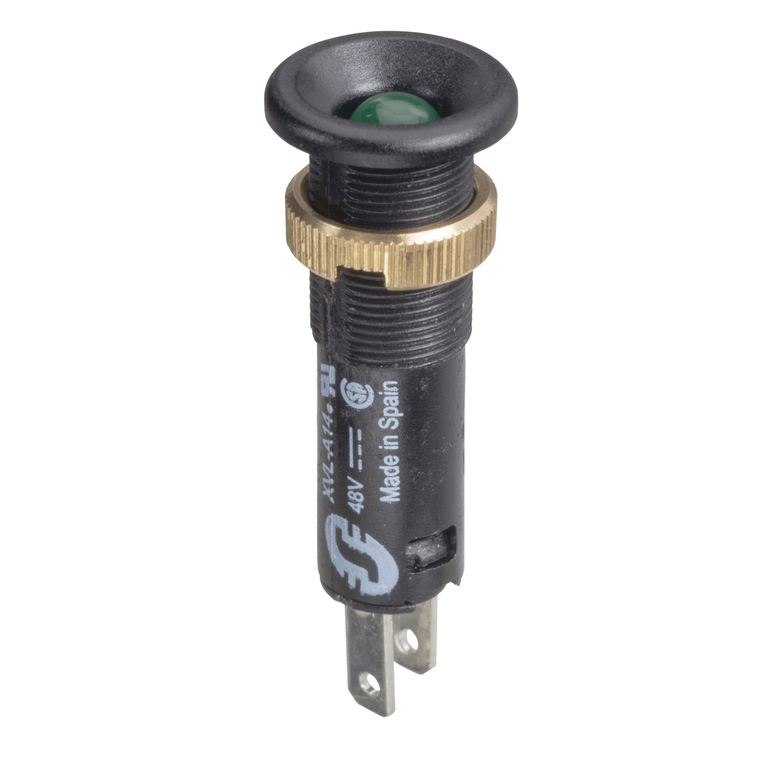

Schneider Electric XVLA143 Round Pilot Light And 8 Ip 40 Green Inte

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XVLA143 Round Pilot Light And 8 Ip 40 Green Inte

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XVLA143

UPC:

3389110651126

MPN:

Condition:

New

Range Of Product:

Harmony XVL

Current Consumption:

10 mA

Bulb Lifespan:

100000 h

Light Source:

protruding LED

Width:

12 mm

[Ui] Rated Insulation Voltage:

50 V IEC 60947-1

Product Certifications:

CSA || UL

Product Or Component Type:

LED pilot light with black bezel

Mounting Diameter:

8 mm

[Us] Rated Supply Voltage:

48 V

Height:

12 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

China Rohs Regulation:

X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Nominal Voltage Limit:

0.8...1.1 Un

Depth:

34 mm

Supply Circuit Type:

DC

Connections - Terminals:

tag for Faston connectors 2.8 x 0.5 mm || tag for soldering connectors

Mercury Free:

Yes

Rohs Exemption Information:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Warranty:

18 months

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Component Name:

XVL

Terminals Description Iso N°1:

(X1-X2)PL

Ambient Air Temperature For Storage:

-40-70 °C

Protection Type:

built-in by diode || integral ballast resistor

Ambient Air Temperature For Operation:

-25-70 °C

Protective Treatment:

TC

Net Weight:

0.003 kg

Ip Degree Of Protection:

IP40 IEC 60529 || IP40 NF C 20-010

Sustainable Offer Status:

Green Premium product

Light Block Colour:

green

Overvoltage Category:

class 3 IEC 60536 || class 3 NF C 20-030

Environmental Disclosure:

ENVPEP111048EN

Circularity Profile:

N/A

Brochure:

View

Datasheet:

View
