Schneider Electric

Schneider Electric XVLA323 Round Pilot Light And 12 Ip 40 Green Int

(No reviews yet) Write a Review
SKU:
XVLA323
UPC:
3389110651607
Condition:
New
Protection Type:
built-in by diode || integral ballast resistor
Mercury Free:
Yes
Nominal Voltage Limit:
0.8...1.1 Un
Mounting Diameter:
12 mm
Connections - Terminals:
threaded connector 1 x 0.2...1 x 1.5 mm²
Bulb Lifespan:
100000 h
Ambient Air Temperature For Storage:
-40-70 °C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Width:
16 mm
Net Weight:
0.007 kg
Ambient Air Temperature For Operation:
-25-70 °C
Warranty:
18 months
Terminals Description Iso N°1:
(X1-X2)PL
Supply Circuit Type:
DC
Light Source:
covered LED
China Rohs Regulation:
X
Light Block Colour:
green
Ip Degree Of Protection:
IP65 IEC 60529 with seal XVLZ912) || IP65 NF C 20-010 with seal XVLZ912) || IP40 IEC 60529 || IP40 NF C 20-010
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Height:
16 mm
Sustainable Offer Status:
Green Premium product
[Ui] Rated Insulation Voltage:
50 V IEC 60947-1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Current Consumption:
18 mA
Protective Treatment:
TC
Product Certifications:
UL || CSA
Environmental Disclosure:
ENVPEP111048EN
[Us] Rated Supply Voltage:
12 V
Rohs Exemption Information:
Yes
Component Name:
XVL
Circularity Profile:
N/A
Depth:
51 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Overvoltage Category:
class 3 IEC 60536 || class 3 NF C 20-030
Product Or Component Type:
LED pilot light with integral lens cap
Range Of Product:
Harmony XVL
Datasheet:
View
$52.00

Description

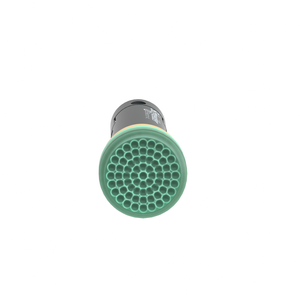

This Harmony XVLA323 is a green pilot light diameter 12mm. Its degree of protection is IP40/IP65 (with seal). It has covered LED included, 12V, lugs connection. It is part of the range Harmony XVL diameter 8-12 mm plastic pilot lights.
