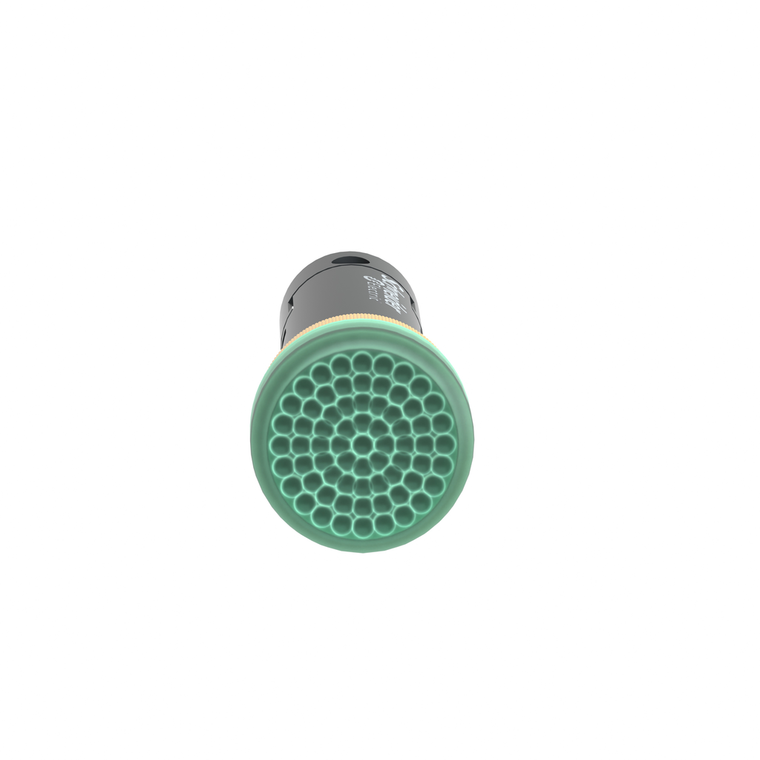

Schneider Electric XVLA333 Round Pilot Light And 12 Ip 40 Green Int

(No reviews yet) Write a Review

Write a Review

Schneider Electric XVLA333 Round Pilot Light And 12 Ip 40 Green Int

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XVLA333

UPC:

3389110651669

MPN:

Condition:

New

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Height:

16 mm

Sustainable Offer Status:

Green Premium product

Nominal Voltage Limit:

0.8...1.1 Un

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Protection Type:

integral ballast resistor || built-in by diode

Circularity Profile:

N/A

Product Or Component Type:

LED pilot light with integral lens cap

Protective Treatment:

TC

Supply Circuit Type:

DC

[Us] Rated Supply Voltage:

24 V

Ambient Air Temperature For Operation:

-25-70 °C

Net Weight:

0.007 kg

Environmental Disclosure:

ENVPEP111048EN

Terminals Description Iso N°1:

(X1-X2)PL

Current Consumption:

18 mA

Light Block Colour:

green

[Ui] Rated Insulation Voltage:

50 V IEC 60947-1

Warranty:

18 months

Ip Degree Of Protection:

IP65 IEC 60529 with seal XVLZ912) || IP65 NF C 20-010 with seal XVLZ912) || IP40 IEC 60529 || IP40 NF C 20-010

Bulb Lifespan:

100000 h

Rohs Exemption Information:

Yes

Width:

16 mm

China Rohs Regulation:

X

Depth:

51 mm

Product Certifications:

CSA || UL

Light Source:

covered LED

Overvoltage Category:

class 3 IEC 60536 || class 3 NF C 20-030

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Connections - Terminals:

threaded connector 1 x 0.2...1 x 1.5 mm²

Range Of Product:

Harmony XVL

Ambient Air Temperature For Storage:

-40-70 °C

Mounting Diameter:

12 mm

Mercury Free:

Yes

Component Name:

XVL

Brochure:

View

Datasheet:

View
