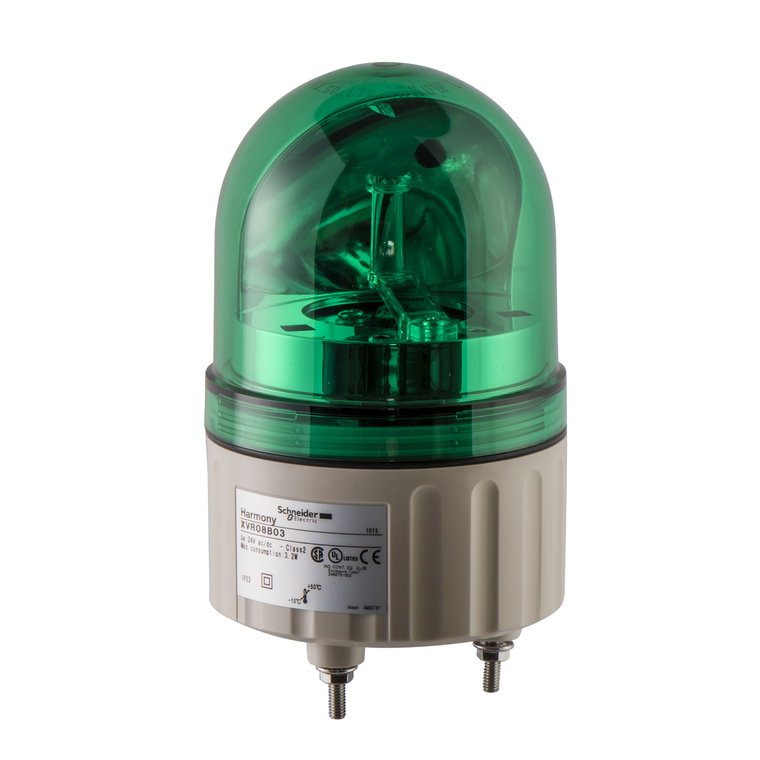

Schneider Electric XVR08B03 Rotating Mirror Beacon Led 84 Mm 24 V Gr
SKU:
XVR08B03
UPC:
3606480033018
MPN:
Condition:
New
Awg Gauge:
AWG 18
Flashing Frequency:
2.3 Hz
Net Weight:
0.3 kg
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Sustainable Offer Status:
Green Premium product
Range Of Product:
Harmony XVR
Mounting Diameter:
84 mm
[Us] Rated Supply Voltage:
24 V AC/DC
Warranty:
18 months
Ambient Air Temperature For Operation:
-10-50 °C
Device Short Name:
XVR
Current Consumption:
125 mA
[Uimp] Rated Impulse Withstand Voltage:
0.8 kV
Material:
ABS (acrylonitrile butadiene-styrene): body part || PC: globe
Protective Treatment:
TC
Clamping Connection Capacity:
0.83 mm²
Cable Length:
500 mm
Environmental Disclosure:
ENVPEP1402018EN
Rohs Exemption Information:
Yes
Cad Overall Depth:
84 mm
China Rohs Regulation:
X
Ip Degree Of Protection:
IP65 IEC 60529 with accessory) || IP23 IEC 60529
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circularity Profile:
ENVEOLI1402018EN
Product Certifications:
UL
Cad Overall Width:
84 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
