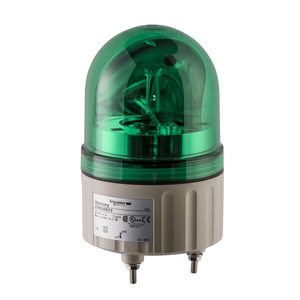

Schneider Electric XVR08B05 Rotating Mirror Beacon Led 84 Mm 24 V Or

Schneider Electric XVR08B05 Rotating Mirror Beacon Led 84 Mm 24 V Or

Schneider Electric
SKU:
XVR08B05
|
UPC:
3.60648E+12
$180.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This orange beacon is part of the range of rotating beacons Harmony XVR diameter 84mm. It is supplied complete and pre-cabled. Supply voltage is 24V AC/DC and degree of protection is IP 23 and (IP 65 with accessories). It is designed for long distance signaling applications, thanks to the use of “super-bright” LED which provides good illuminating power, a long service life and reduced time for maintenance and also energy saving. It is used mainly in the iron and steel industry, on industrial handling vehicles or for safety applications.
Additional Information
Cad Overall Depth:
84 mm
Material:
ABS (acrylonitrile butadiene-styrene): body part || PC: globe
Protective Treatment:
TC
Ambient Air Temperature For Storage:
-35-70 °C
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
X
Clamping Connection Capacity:
0.83 mm²
Product Or Component Type:
prewired rotating mirror beacon
Cad Overall Width:
84 mm
Supply Voltage Limits:
19-30 V DC || 21.6-26.4 V AC
[Us] Rated Supply Voltage:
24 V AC/DC
Ambient Air Temperature For Operation:
-10-50 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Environmental Disclosure:
ENVPEP1402018EN
Light Source:
high luminosity LED, orange
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
[Uimp] Rated Impulse Withstand Voltage:
0.8 kV
Device Short Name:
XVR
Product Certifications:
UL
Current Consumption:
125 mA
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Standards:
IEC 61000-6-4 || IEC 61000-6-2
Ip Degree Of Protection:
IP65 IEC 60529 with accessory) || IP23 IEC 60529
Marking:
CE
Sound Signalling:
without
Awg Gauge:
AWG 18
Net Weight:
0.3 kg
Electrical Shock Protection Class:
class II IEC 61140
Mounting Diameter:
84 mm
Product Mounting:
by 3 M4 screws
Rohs Exemption Information:
Yes
Range Of Product:
Harmony XVR
Warranty:
18 months
Flashing Frequency:
2.3 Hz
Circularity Profile:
ENVEOLI1402018EN
Cable Length:
500 mm
