Schneider Electric

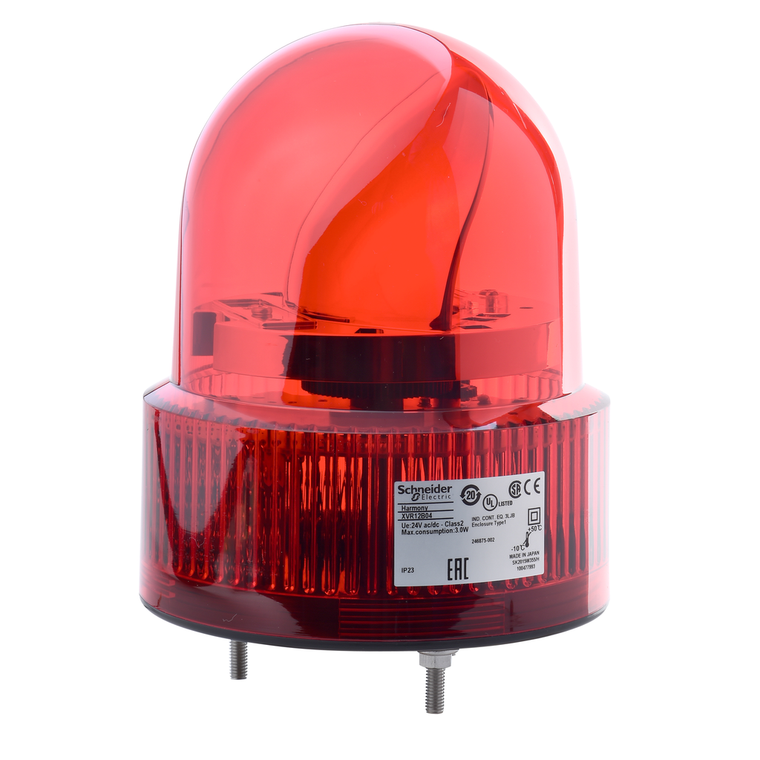

Schneider Electric XVR12B04 Rotating Mirror Beacon Led 120 Mm 24 V R

SKU:

XVR12B04

UPC:

3606480033155

MPN:

Condition:

New

Circularity Profile:

ENVEOLI1402018EN

Rohs Exemption Information:

Yes

Cad Overall Width:

120 mm

Ambient Air Temperature For Storage:

-35-70 °C

Cable Length:

400 mm

Ip Degree Of Protection:

IP23 IEC 60529

Environmental Disclosure:

ENVPEP1402018EN

Light Source:

high luminosity LED, red

Electrical Shock Protection Class:

class II IEC 61140

Sustainable Offer Status:

Green Premium product

Clamping Connection Capacity:

0.83 mm²

[Uimp] Rated Impulse Withstand Voltage:

0.8 kV

Flashing Frequency:

2.3 Hz

Warranty:

18 months

Ambient Air Temperature For Operation:

-10-50 °C

Sound Signalling:

without

Product Or Component Type:

prewired rotating mirror beacon

Standards:

IEC 61000-6-2 || IEC 61000-6-4

Marking:

CE

Current Consumption:

125 mA

China Rohs Regulation:

X

Cad Overall Depth:

120 mm

Mounting Diameter:

120 mm

Product Mounting:

by 3 M5 screws

Range Of Product:

Harmony XVR

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Protective Treatment:

TC

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Device Short Name:

XVR

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Awg Gauge:

AWG 18

Net Weight:

0.5 kg

Material:

ABS (acrylonitrile butadiene-styrene): body part || AS: globe

Supply Voltage Limits:

19-30 V DC || 21.6-26.4 V AC

[Us] Rated Supply Voltage:

24 V AC/DC

Brochure:

View

Catalog:

View

Datasheet:

View
