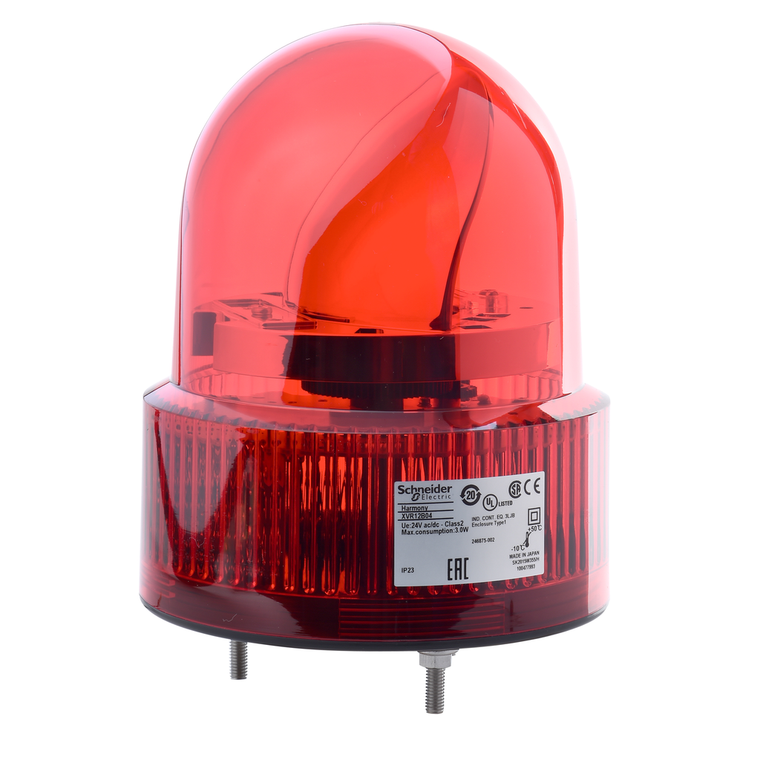

Schneider Electric XVR12B04S Rotating Mirror Beacon Led 120 Mm Buzzer
This rotating mirror is part of the range of pre-wired rotating/flashing beacons Harmony XVR. It is supplied complete, pre-cabled with a buzzer integrated (adjustable sound level from 50dB to 90dB at 1 m). It features red super bright LED light source and it can be supplied with 24V AC/DC. It provides good illuminating power and a long service life (reduced time for maintenance) thanks to its super-bright LED. Its protection index is IP23. It weighs 500g, its diameter is 130mm and it is 150mm high. It provides AS globe and ABS (acrylonitrile butadiene-styrene) body part. It is designed for long distance signaling applications, used mainly in the iron and steel industry, on industrial handling vehicles or for safety applications. It is CE, UL and CSA certified.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Warranty:
- 18 months
- Mounting Diameter:
- 120 mm
- Net Weight:
- 0.5 kg
- China Rohs Regulation:
- X
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sound Signalling:
- buzzer
- Product Mounting:
- by 3 M5 screws
- Noise Level:
- 50-90 dB continuous or intermittent tone)1 m
- Product Or Component Type:
- prewired rotating mirror beacon
- Clamping Connection Capacity:
- 0.83 mm²
- Range Of Product:
- Harmony XVR
- Current Consumption:
- 196 mA
- Electrical Shock Protection Class:
- class II IEC 61140
- [Us] Rated Supply Voltage:
- 24 V AC/DC
- Awg Gauge:
- AWG 18
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Standards:
- IEC 61000-6-4 || IEC 61000-6-2
- Environmental Disclosure:
- ENVPEP1402018EN
- Cable Length:
- 400 mm
- Rohs Exemption Information:
- Yes
- Cad Overall Depth:
- 120 mm
- Device Short Name:
- XVR
- Circularity Profile:
- ENVEOLI1402018EN
- Ambient Air Temperature For Operation:
- -10-50 °C
- Cad Overall Width:
- 120 mm
- Material:
- ABS (acrylonitrile butadiene-styrene): body part || AS: globe
- Light Source:
- high luminosity LED, red
- Sustainable Offer Status:
- Green Premium product
- Flashing Frequency:
- 2.3 Hz
- Ambient Air Temperature For Storage:
- -35-70 °C
- Protective Treatment:
- TC
- Marking:
- CE
- Supply Voltage Limits:
- 19-30 V DC || 21.6-26.4 V AC
- Ip Degree Of Protection:
- IP23 IEC 60529
- [Uimp] Rated Impulse Withstand Voltage:
- 0.8 kV
