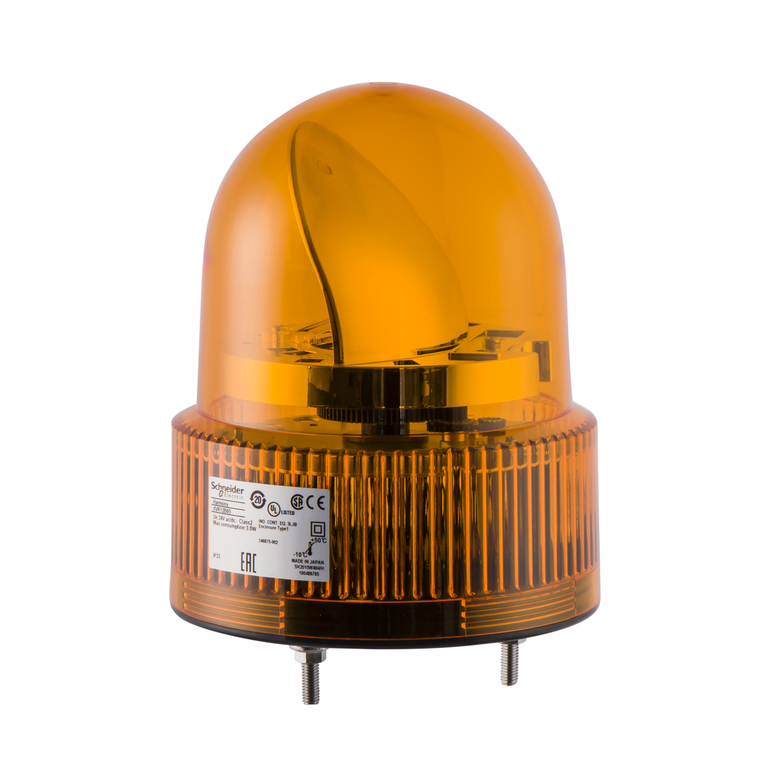

Schneider Electric XVR12B05S Rotating Mirror Beacon Led 120 Mm Buzzer
Schneider Electric
$216.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XVR12B05S Rotating Mirror Beacon Led 120 Mm Buzzer
This orange beacon is part of the range of rotating beacons Harmony XVR diameter 120mm. It is supplied complete with a buzzer and pre-cabled. Supply voltage is 24V AC/DC and degree of protection is IP 23. It is designed for long distance signaling applications, thanks to the use of “super-bright” LED which provides good illuminating power, a long service life and reduced time for maintenance and also energy saving. It is used mainly in the iron and steel industry, on industrial handling vehicles or for safety applications.
- Clamping Connection Capacity:
- 0.83 mm²
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Current Consumption:
- 196 mA
- Ambient Air Temperature For Storage:
- -35-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sustainable Offer Status:
- Green Premium product
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Us] Rated Supply Voltage:
- 24 V AC/DC
- Protective Treatment:
- TC
- Environmental Disclosure:
- ENVPEP1402018EN
- Mounting Diameter:
- 120 mm
- Warranty:
- 18 months
- Circularity Profile:
- ENVEOLI1402018EN
- Device Short Name:
- XVR
- Range Of Product:
- Harmony XVR
- Cad Overall Depth:
- 120 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 0.8 kV
- Product Mounting:
- by 3 M5 screws
- Marking:
- CE
- Electrical Shock Protection Class:
- class II IEC 61140
- Awg Gauge:
- AWG 18
- Ip Degree Of Protection:
- IP23 IEC 60529
- Noise Level:
- 50-90 dB continuous or intermittent tone)1 m
- Net Weight:
- 0.5 kg
- Sound Signalling:
- buzzer
- Rohs Exemption Information:
- Yes
- Cable Length:
- 400 mm
- Standards:
- IEC 61000-6-4 || IEC 61000-6-2
- Cad Overall Width:
- 120 mm
- Product Or Component Type:
- prewired rotating mirror beacon
- Ambient Air Temperature For Operation:
- -10-50 °C
- Supply Voltage Limits:
- 19-30 V DC || 21.6-26.4 V AC
- Flashing Frequency:
- 2.3 Hz
- Material:
- ABS (acrylonitrile butadiene-styrene): body part || AS: globe
- Light Source:
- high luminosity LED, orange
- China Rohs Regulation:
- X
