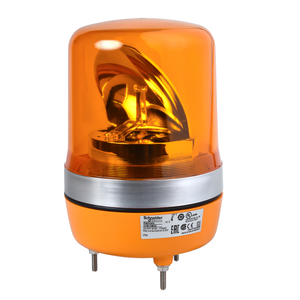

Schneider Electric XVR13B05 Rotating Mirror Beacon Led 130 Mm 24 V O

Schneider Electric XVR13B05 Rotating Mirror Beacon Led 130 Mm 24 V O

Schneider Electric
SKU:
XVR13B05
|
UPC:
3606480033308
Availability:
Contact us to confirm availability and lead times.
$270.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This rotating mirror is part of the range of pre-wired rotating/flashing beacons Harmony XVR. It is supplied complete, pre-cabled without buzzer. It features orange super bright LED light source and it can be supplied with 24V DC. It provides good illuminating power and a long service life (reduced time for maintenance) thanks to its super-bright LED. Its protection index is IP66. It weighs 800g, its diameter is 130mm and it is 179mm high. It provides PC (polycarbonate) globe and ABS (acrylonitrile butadiene-styrene) body part. It is designed for long distance signaling applications, used mainly in the iron and steel industry, on industrial handling vehicles or for safety applications. It is CE, UL and CSA certified.
Additional Information
Net Weight:
0.8 kg
Protective Treatment:
TC
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Cable Length:
400 mm
Product Or Component Type:
prewired rotating mirror beacon
Cad Overall Depth:
130 mm
Standards:
IEC 61000-6-2 || IEC 61000-6-4
Light Source:
high luminosity LED, orange
Flashing Frequency:
2.7 Hz
Material:
ABS (acrylonitrile butadiene-styrene): body part || PC: globe
China Rohs Regulation:
X
Supply Voltage Limits:
19-30 V DC
Sound Signalling:
without
Warranty:
18 months
Environmental Disclosure:
ENVPEP1402018EN
Ambient Air Temperature For Operation:
-30-50 °C
Current Consumption:
125 mA
Circularity Profile:
ENVEOLI1402018EN
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Storage:
-35-70 °C
Mounting Diameter:
130 mm
[Uimp] Rated Impulse Withstand Voltage:
0.8 kV
Product Mounting:
by 3 M8 screws
[Us] Rated Supply Voltage:
24 V DC
Cad Overall Width:
130 mm
Range Of Product:
Harmony XVR
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Device Short Name:
XVR
Ip Degree Of Protection:
IP66 IEC 60529 resistant to vibration)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Awg Gauge:
AWG 18
Electrical Shock Protection Class:
class II IEC 61140
Rohs Exemption Information:
Yes
Clamping Connection Capacity:
1.25 mm²
Marking:
CE
Brochure:
View
Catalog:
View
Datasheet:
View
