Schneider Electric

Schneider Electric XVR13M04L Rot.Light Red, Led Based, 230V

(No reviews yet) Write a Review
SKU:
XVR13M04L
UPC:
3389119045322
Condition:
New
Sustainable Offer Status:
Green Premium product
Cad Overall Depth:
130 mm
Net Weight:
0.99 kg
Sound Signalling:
without
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Cad Overall Width:
130 mm
Flashing Frequency:
2.7 Hz
Ambient Air Temperature For Storage:
-35-70 °C
[Us] Rated Supply Voltage:
230 V AC
Device Short Name:
XVR
Material:
ABS (acrylonitrile butadiene-styrene): body part || PC: globe
[Uimp] Rated Impulse Withstand Voltage:
4 kV
Product Or Component Type:
prewired rotating mirror beacon
Rohs Exemption Information:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Current Consumption:
22 mA
Ambient Air Temperature For Operation:
-30-50 °C
Protective Treatment:
TC
China Rohs Regulation:
X
Light Source:
high luminosity LED, red
Electrical Shock Protection Class:
class II IEC 61140
Circularity Profile:
ENVEOLI1402018EN
Cable Length:
400 mm
Standards:
EN/IEC 60947-5-1 || EN/IEC 60947-1
Marking:
CE
Range Of Product:
Harmony XVR
Environmental Disclosure:
ENVPEP1402018EN
Clamping Connection Capacity:
1.25 mm²
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Mounting:
by 3 M6 screws
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 IEC 60529
Warranty:
18 months
Mounting Diameter:
130 mm
Awg Gauge:
AWG 18
Catalog:
View
Datasheet:
View
$207.00

Description

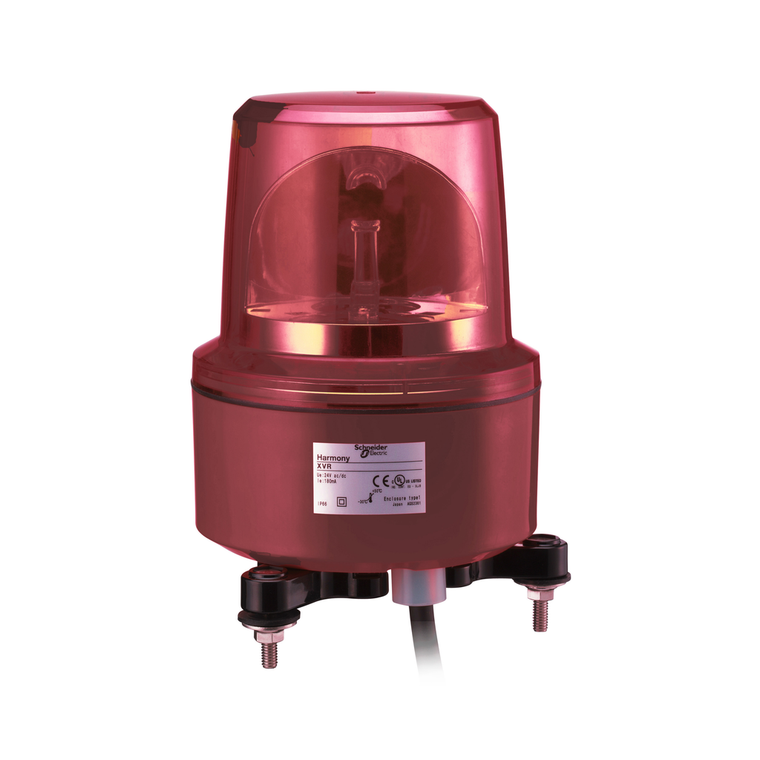

This red beacon is part of the range of rotating beacons Harmony XVR diameter 130mm. It is supplied complete and pre-cabled. Supply voltage is 230V AC and degree of protection is IP 66 and IP 67. It is designed for long distance signaling applications, thanks to the use of “super-bright” LED which provides good illuminating power, a long service life and reduced time for maintenance and also energy saving. It is used mainly in the iron and steel industry, on industrial handling vehicles or for safety applications.
