Schneider Electric XVS10GMW Sirène, 120V Ac, 2 Ton, Blanche, Sans Ca
Schneider Electric
$150.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

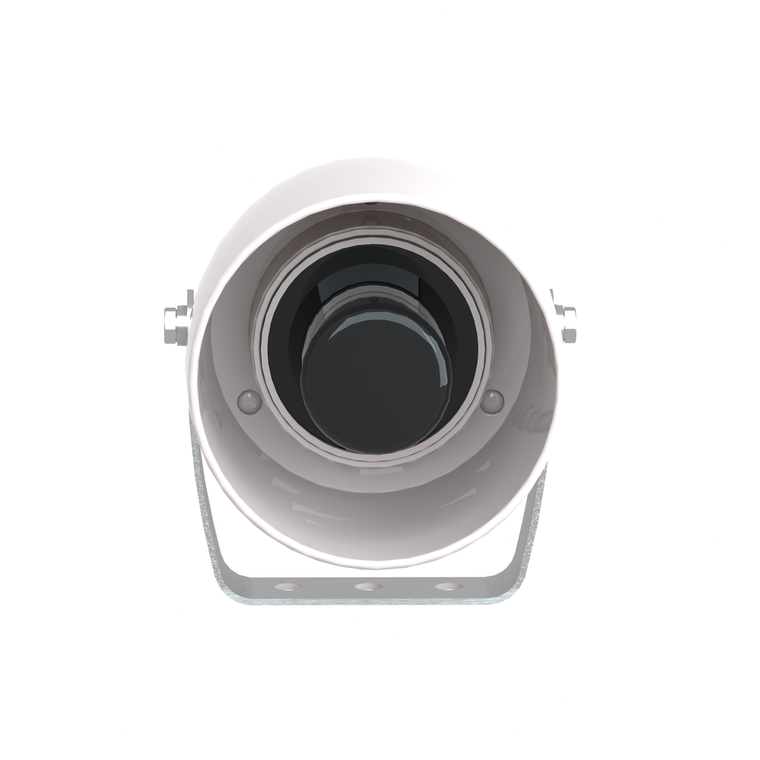

Schneider Electric XVS10GMW Sirène, 120V Ac, 2 Ton, Blanche, Sans Ca
This Schneider Electric Harmony XVS Multi-sound Siren is white and has PC body material It is dust resistant and water resistant thanks to its IP53 protection, making it ideal for operation in harsh environments High performance International standards & certifications (IP53)
- Product Or Component Type:
- siren
- Electrical Shock Protection Class:
- class II EN/IEC 61140
- Warranty:
- 18 months
- Environmental Disclosure:
- ENVPEP1411024EN
- Range Of Product:
- Harmony XVS
- Electrical Connection:
- cable 6.5-8.5 mm
- Color:
- White
- Net Weight:
- 1 kg
- Marking:
- CE
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ip Degree Of Protection:
- IP53
- Height:
- 114 mm
- Current Consumption:
- 80 mA 120 V
- Ambient Air Temperature For Operation:
- -30-50 °C
- Circularity Profile:
- ENVEOLI1411024EN
- Depth:
- 153.2 mm
- [Us] Rated Supply Voltage:
- 120 V AC
- Noise Level:
- 106-106 dB continuous or intermittent tone)1 m
- Ambient Air Temperature For Storage:
- -35-70 °C
- Signalling Type:
- 2 tones siren
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Clamping Connection Capacity:
- <= 1 x 1.5 mm²
- Material:
- PC: body
- Protective Treatment:
- TC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Device Short Name:
- XVS
- Width:
- 114 mm
- Standards:
- EN/IEC 60947-1 || EN/IEC 60947-5-1
- China Rohs Regulation:
- X
- Catalog:
- View
- Datasheet:
- View
