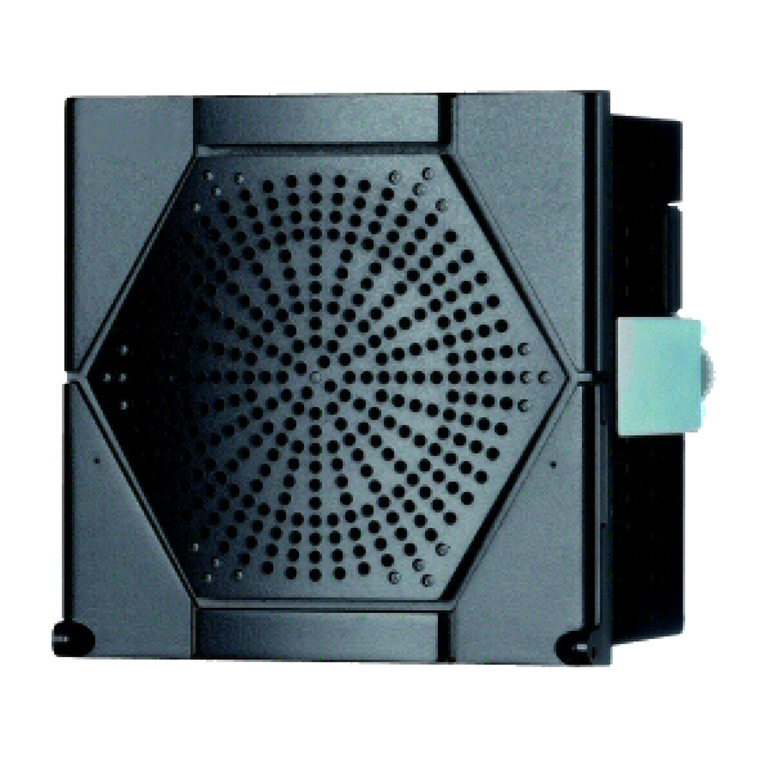

Schneider Electric XVS96BMBN Electronic Alarm, 12/24 V Acdc, Black

Schneider Electric XVS96BMBN Electronic Alarm, 12/24 V Acdc, Black

Schneider Electric
SKU:
XVS96BMBN
|
UPC:
3606480072017
$414.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This electronic alarm is an accessory designed as an audible and signaling unit for custom assembly It has a DIN72 connector and is dust resistant and water resistant thanks to its IP54 protection, making it ideal for operation in harsh environments The alarm is black High performance International standards & certifications (IP54)
Additional Information
Sustainable Offer Status:
Green Premium product
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Material:
PC (polycarbonate): terminal cover || PC (polycarbonate)/ABS (acrylonitrile butadiene-styrene): body
Marking:
CE
Environmental Disclosure:
ENVPEP1311010EN
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Signalling Type:
16 tones alarm
Width:
96 mm
[Us] Rated Supply Voltage:
12...24 V DC
Current Consumption:
250 mA 12 V || 292 mA 12 V || 292 mA 24 V || 354 mA 24 V
Depth:
58.1 mm
Rohs Exemption Information:
Yes
Overvoltage Category:
class II IEC 61140
Noise Level:
0-96 dB continuous or intermittent tone)1 m
Product Or Component Type:
electronic alarm
Color:
Black
[Uimp] Rated Impulse Withstand Voltage:
0.8 kV
Ambient Air Temperature For Storage:
-35-70 °C
Ip Degree Of Protection:
panel mounted IP54 IEC 60529
Range Of Product:
Harmony XVS
Clamping Connection Capacity:
<= 1 x 1.5 mm²
Standards:
IEC 60947-5-1 || IEC 60947-1
Net Weight:
0.4 kg
Device Short Name:
XVS
Protective Treatment:
TC
China Rohs Regulation:
X
Ambient Air Temperature For Operation:
-20-50 °C
Mounting Support:
96 mm DIN rail
Circularity Profile:
ENVEOLI1311010EN
Mercury Free:
Yes
Discrete Output Type:
NPN
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Height:
96 mm
Warranty:
18 months
Catalog:
View
Datasheet:
View
