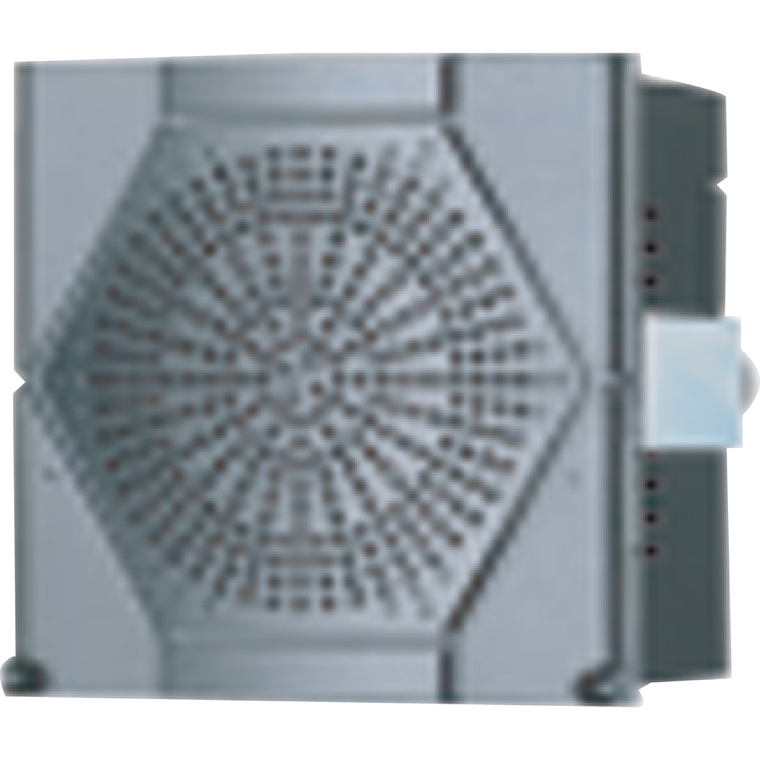

Schneider Electric XVS96BMWP Electronic Alarm, 12/24 V Acdc, White

(No reviews yet) Write a Review

Write a Review

Schneider Electric XVS96BMWP Electronic Alarm, 12/24 V Acdc, White

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XVS96BMWP

UPC:

3606480072000

MPN:

Condition:

New

Discrete Output Type:

PNP

Range Of Product:

Harmony XVS

Standards:

IEC 60947-5-1 || IEC 60947-1

[Uimp] Rated Impulse Withstand Voltage:

0.8 kV

Ambient Air Temperature For Operation:

-20-50 °C

Warranty:

18 months

Net Weight:

0.4 kg

Marking:

CE

Overvoltage Category:

class II IEC 61140

Noise Level:

0-96 dB continuous or intermittent tone)1 m

Product Or Component Type:

electronic alarm

China Rohs Regulation:

X

Ambient Air Temperature For Storage:

-35-70 °C

Sustainable Offer Status:

Green Premium product

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mounting Support:

96 mm DIN rail

Ip Degree Of Protection:

panel mounted IP54 IEC 60529

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Color:

White

Environmental Disclosure:

ENVPEP1311010EN

Height:

96 mm

Depth:

58.1 mm

Clamping Connection Capacity:

<= 1 x 1.5 mm²

Device Short Name:

XVS

Current Consumption:

250 mA 12 V || 292 mA 12 V || 292 mA 24 V || 354 mA 24 V

[Us] Rated Supply Voltage:

12...24 V DC

Mercury Free:

Yes

Circularity Profile:

ENVEOLI1311010EN

Signalling Type:

16 tones alarm

Width:

96 mm

Material:

PC (polycarbonate): terminal cover || PC (polycarbonate)/ABS (acrylonitrile butadiene-styrene): body

Rohs Exemption Information:

Yes

Protective Treatment:

TC
