Schneider Electric XVUC25 Xvu Orange Led Unit
Schneider Electric
$34.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

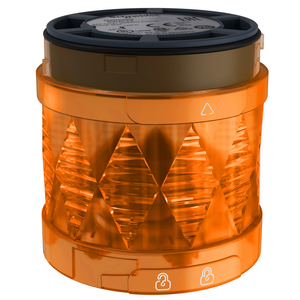

Schneider Electric XVUC25 Xvu Orange Led Unit
This orange illuminated unit is designed as an accessory to be connected with base and create complete tower light. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
- [Us] Rated Supply Voltage:
- 24 V AC/DC
- Rohs Exemption Information:
- Yes
- Range Of Product:
- Harmony XVU
- Ip Degree Of Protection:
- IP65
- Material:
- PC (polycarbonate) V-2 UL 94 || PC (polycarbonate) V-0 UL 94
- Current Consumption:
- <= 40 mA
- Length:
- 50 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Vibration Resistance:
- 2 gn
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Certifications:
- CSA || UL || CE
- Assembly Style:
- customer assembly, up to 5 units || up to 4 units with buzzer
- Light Source:
- LED, orange
- Beacon Or Indicator Bank Unit Type:
- LED unit
- Environmental Disclosure:
- ENVPEP1403004EN
- Mounting Diameter:
- 60 mm
- Ambient Air Temperature For Operation:
- -25-50 °C
- Ambient Air Temperature For Storage:
- -40-70 °C
- Maximum Power Dissipation In W:
- 2 W
- Net Weight:
- 0.064 kg
- Device Application:
- packaging machine || machine tools || automotive
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circularity Profile:
- ENVEOLI1403004EN
- Signalling Type:
- steady
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- X
- Component Name:
- XVU
- Product Or Component Type:
- modular tower light
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
