Schneider Electric XVUC46 Xvu Blue Blinking Led Unit
Schneider Electric
$44.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XVUC46 Xvu Blue Blinking Led Unit

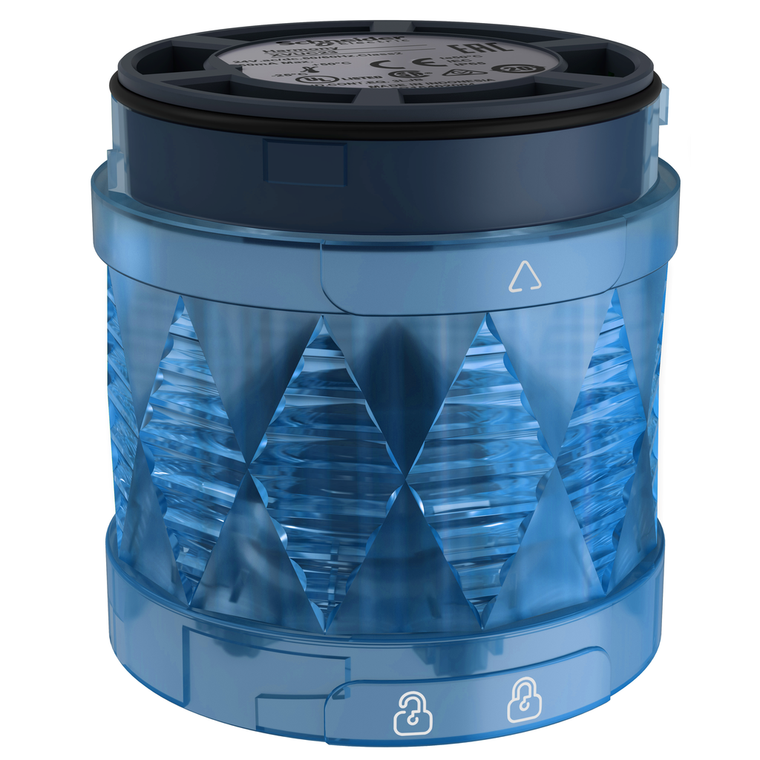

This Harmony XVU illuminated unit is supplied with 24V AC/DC and has a blue LED with a high brightness flashing light. This blue illuminated unit is designed as an accessory to be connected with base and create complete tower light. Its integral LED offers a flashing light pattern, allowing it to clearly display the status of your machines in applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Simple and modular design to allow for easy installation with base unit and make complete tower light. Adjustable flashing schemes to allow for more advanced alerting to workfloor staff around the machine. It complies with international standards and certifications (CSA, UL, RoHS, EAC, CE standards and IP65).
- Ip Degree Of Protection:
- IP65
- [Us] Rated Supply Voltage:
- 24 V AC/DC
- Assembly Style:
- customer assembly, up to 5 units || up to 4 units with buzzer
- Length:
- 50 mm
- Product Or Component Type:
- modular tower light
- Mounting Diameter:
- 60 mm
- Beacon Or Indicator Bank Unit Type:
- LED unit
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Light Source:
- LED, blue
- China Rohs Regulation:
- X
- Material:
- PC (polycarbonate) V-2 UL 94 || PC (polycarbonate) V-0 UL 94
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range Of Product:
- Harmony XVU
- Circularity Profile:
- ENVEOLI1403004EN
- Product Certifications:
- CSA || UL || CE
- Environmental Disclosure:
- ENVPEP1403004EN
- Signalling Type:
- blinking
- Device Application:
- machine tools || automotive || packaging machine
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Vibration Resistance:
- 2 gn
- Component Name:
- XVU
- Ambient Air Temperature For Operation:
- -25-50 °C
- Maximum Power Dissipation In W:
- 1.2 W
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Net Weight:
- 0.064 kg
- Ambient Air Temperature For Storage:
- -40-70 °C
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
