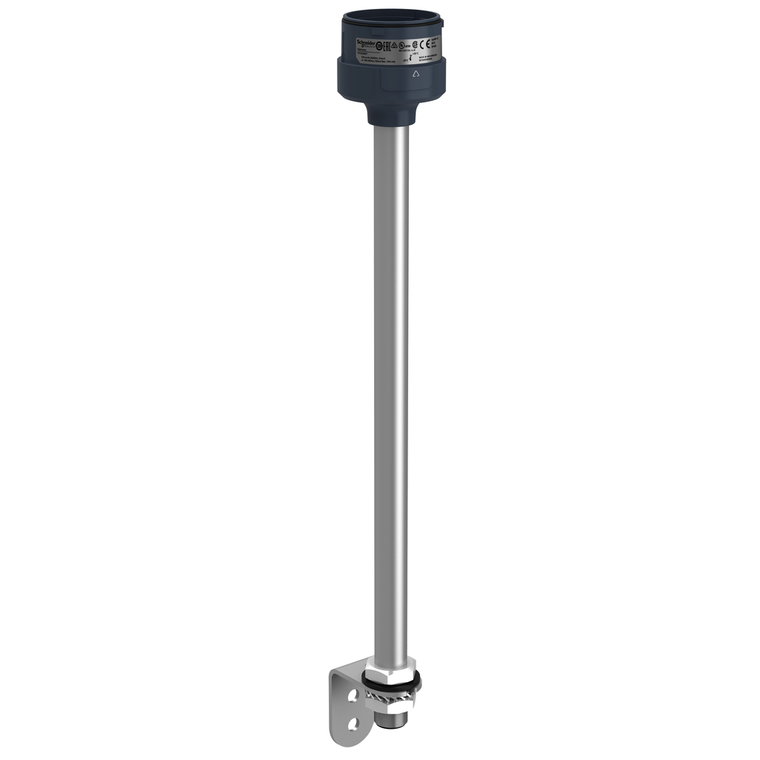

Schneider Electric XVUZ400T Metal Bracket With 400Mm Pole, Black

Schneider Electric XVUZ400T Metal Bracket With 400Mm Pole, Black

Schneider Electric
SKU:
XVUZ400T
|
UPC:
3606480887147
Availability:
Contact us to confirm availability and lead times.
$48.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XVU fixing plate is work with DC and AC base units. This black fixing plate with support pole is designed as a mounting and fixing accessory for modular tower light. It allows fast and easy replacement of your signaling units via simple push-in terminals. It has a diameter of 60mm with a pole height of 400mm. It complies with CSA, UL, and CE standards and it has IP32 protection index. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists.
Additional Information
Mercury Free:
Yes
Ambient Air Temperature For Storage:
-40-70 °C
Sustainable Offer Status:
Green Premium product
Housing Colour:
black
Ambient Air Temperature For Operation:
-25-50 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation:
X
Product Compatibility:
top AC/DC body
Net Weight:
0.32 kg
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Accessory / Separate Part Category:
mounting and fixing accessory
Ip Degree Of Protection:
IP32
Mounting Support:
metal bracket with pole
Mounting Diameter:
60 mm
[Us] Rated Supply Voltage:
24 V AC/DC || 110...240 V AC
Component Name:
XVU
Environmental Disclosure:
ENVPEP1403004EN
Pole Heigth:
400-400 mm
Circularity Profile:
ENVEOLI1403004EN
Accessory / Separate Part Type:
fixing plate
Length:
450-450 mm
Material:
PBT (polybutylene terephthalate) V-0 UL 94 || ABS (acrylonitrile butadiene-styrene) || PC (polycarbonate) || aluminium
Range Of Product:
Harmony XVU
Rohs Exemption Information:
Yes
Product Or Component Type:
modular tower light
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Certifications:
UL || CSA || CE
Connections - Terminals:
push-in
